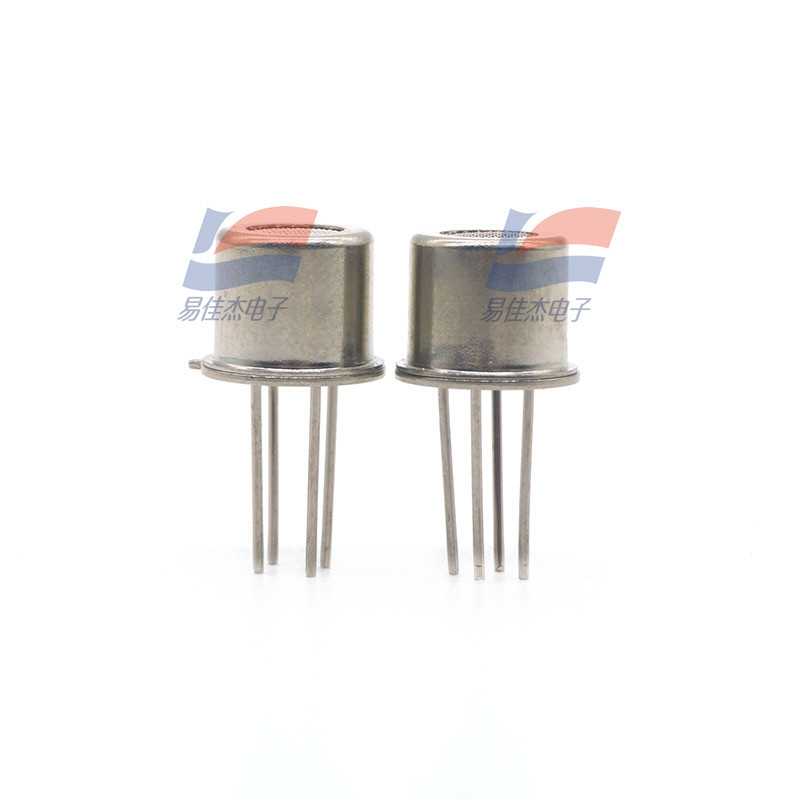

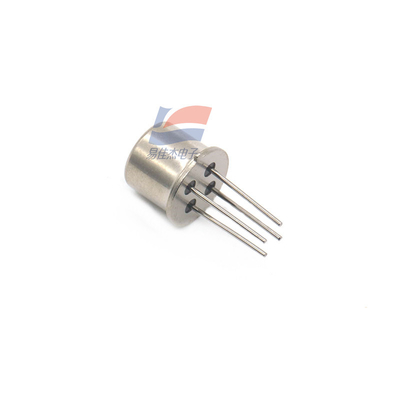

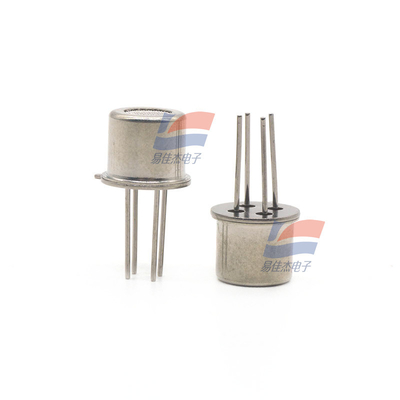

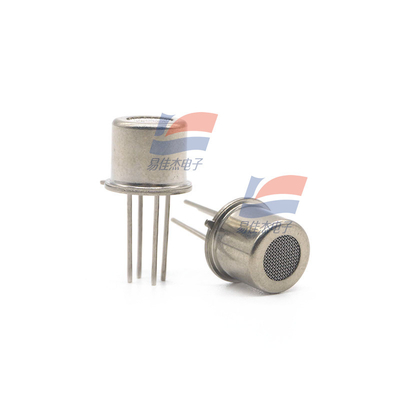

WSP5110 Freon Gas Sensor 10 - 1000ppm Planar Semiconductor Freon Sensor

Sensitivity: -200~-650

Reaction time: < 80

Zero current: -80~+80

Noise: standard deviation ±2

Operating temperature: -10~50℃

Working humidity: 20~95%RH

Typical applications: air conditioning, refrigeration equipment

Category: Gas sensor

Operating Temp: -40 C

Storage Temp: -20 C

Operating Pressure: 80kPa

Storage Pressure: 80kPa

Supply Voltage: 3.2 VDC (+5%)

Average Current Consumption: 30mA

Operating Humidity: 0%

Storage Humidity: 50%

Long-term stability: < 2% signal

Operating temperature: -20 ° C to 50 ° C

Working humidity: 15 to 90%RH (no condensation)

Storage time: 6 months (in special box)
