Product Details:
|
| Temperature Range: | -30~55℃ | Pressure Range: | 80-120Kpa |
|---|---|---|---|
| Humidity Range: | 5-95%rh | Storage Period: | 6 Month |
| Load Resistance: | 47-100Ω (recommended) | Height Mm: | 17.4 |
| Weight: | <16grams | ||
| Highlight: | O2-A3,Oxygen Analyzer Sensor No Drift |
||

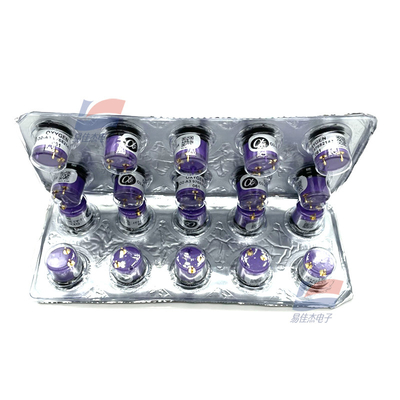

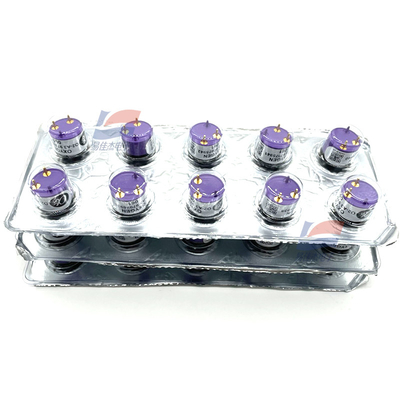

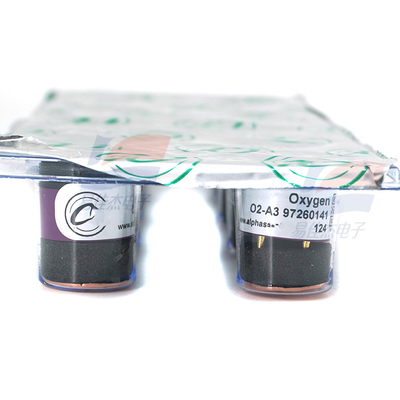

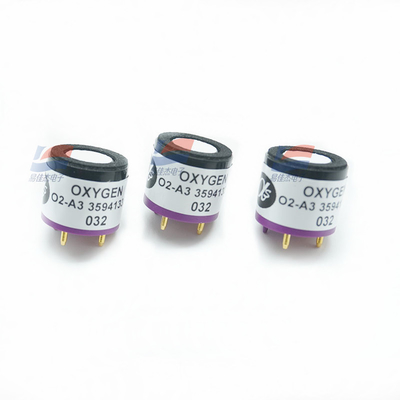

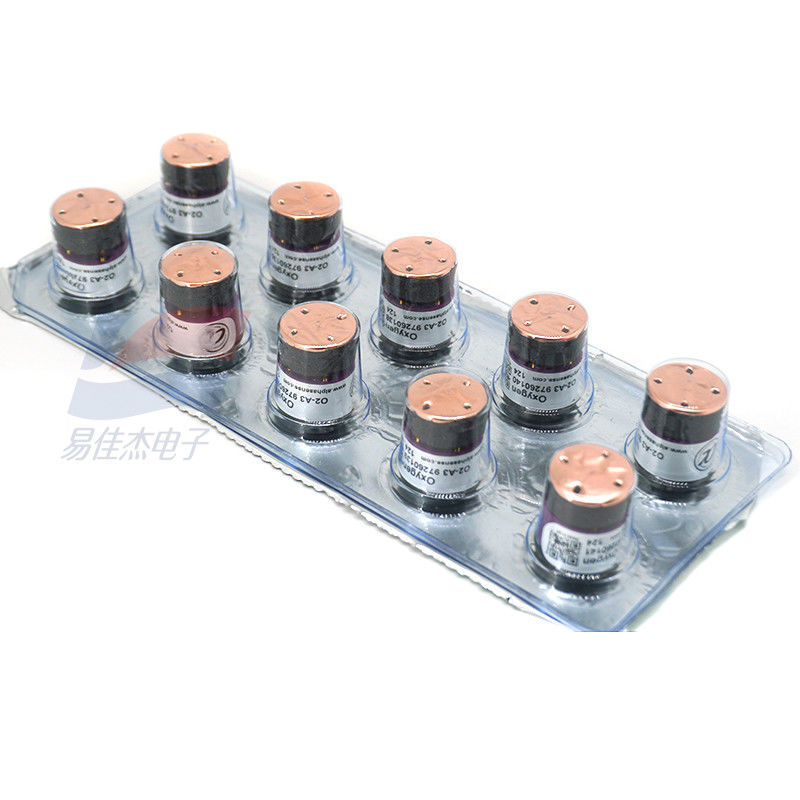

O2-A3 Oxygen Sensor Long Life Good Stability No Drift
Description:
Oxygen sensor (O2-A3) product advantages are long life, up to 4 years; good stability, no drift;
typically used in oxygen alarms, oxygen analyzers.
Performance:
| Output | μA@20.9%O2, 22℃ | 60~85 |
| Response time t90 | from 20.9% to 0% O2(s) (47Ω load) | <15 |
| Zero current | μA@99.99%N2,22°C | <2.5 |
Features:
(1) Measurement range of oxygen concentration (%): 0-30
(2) Working life: > 36 months when 85% of initial signal is reached
(3) Dimensions (mm): Φ20.3×16.8mm
(4) Output: 65 - 85 μA @ 22°C, 20.9% O2
(5) Response time t90 (seconds): < 15 from 20.9% to 0 (load 47Ω)
(6) Weight: < 16g
(7) Temperature range: -30 - 55℃
(8) Pressure range: 80 - 120Kpa
(9) Humidity range: 5 - 95%RH
(10) Storage time: 6 months (storage temperature 3 - 20℃)
(11) Load resistance: 47 - 100 ohms
