Product Details:
|
| Operating Temperature Range: | -40~+50℃ | Recommended Storage Temperature: | 0~20℃ |
|---|---|---|---|
| Working Pressure Range Atmospheric Pressure: | ± 10% | Operating Humidity Range: | 15 - 90% RH Non-condensing |
| Expected Service Life: | 2 Years In Air | Long-term Output Drift: | <5% Signal Loss Per Year |
| Highlight: | SR-H-MC,Hydrogen Gas Sensor ACU01-U00 |
||

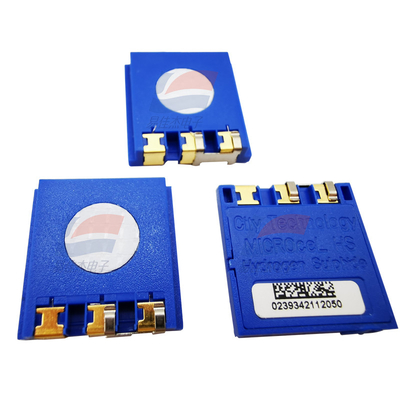

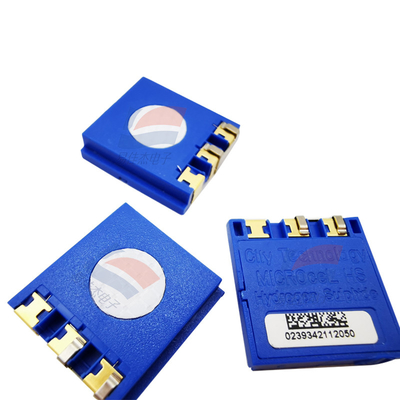

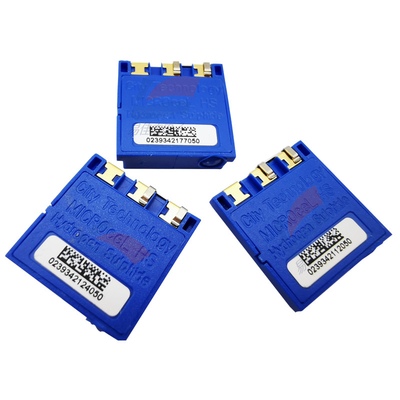

MICROceL HS ACU01-U00 BW SR-H-MC H2S Hydrogen Gas Sensor Three Electrode Electrochemistry
Hydrogen sulfide gas sensor (H2S sensor) MICROceL HS features:
1. Robust hydrogen sulfide sensor for portable life safety applications
2.small size
Specification:
| Product Type | H2S Gas Sensor |
| Working principle | Three-electrode electrochemistry |
| Measuring range | 0-100 ppm CO |
| Overload | 1000 ppm CO |
| Filter | Reduce the TLV level of interfering gases |
| Sensitivity | 0.105 ± 0.025 μA/ppm |
| T50 response time | <10 seconds at 20°C |
| Typical T90 response time | 25~40 seconds |
| Baseline shift (clean air) | -2~+1 ppm CO equivalent |
| Zero offset (+20°C~ +40°C) | <0.2 ppm CO equivalent |
CITY is designed to operate in a variety of environments and harsh conditions. However, it is important to avoid exposure to high concentrations of solvent vapors when storing, loading the instrument, and working.
When using the sensor on a printed circuit board (PCB), a degreaser should be used before mounting the sensor. Do not stick directly on or near the CiTiceL as the solvent may cause the plastic to crack.
