Product Details:
|
| Product Type: | Gas Sensor | How It Works: | Electrochemistry |
|---|---|---|---|
| Measurement Range: | 0-100% | ||
| Highlight: | MAX250B Gas Sensor,R125P02-003 Gas Sensor,Galvanic Cell Oxygen Sensor |
||

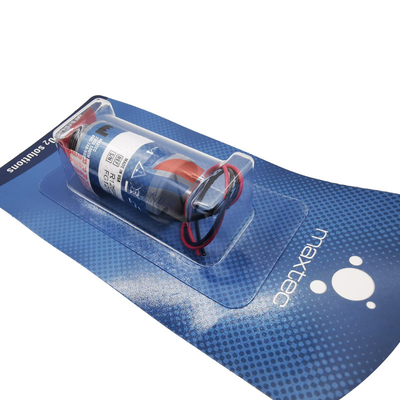

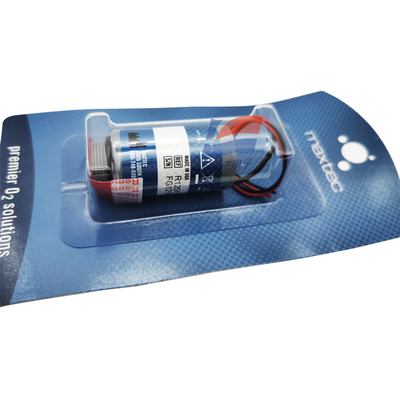

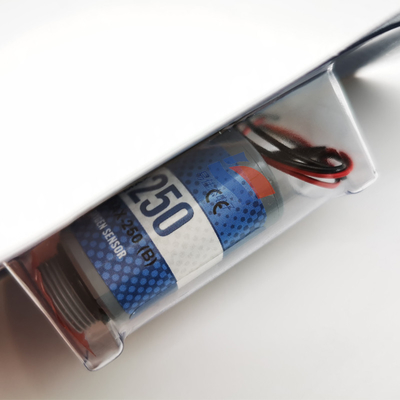

MAX250B R125P02-003 Oxygen Cell Sensors Use For Medical
The MAX-250B oxygen sensor is a galvanic cell type oxygen sensor. It is similar in operation to a conventional amperometric oxygen sensor (conductive positive/KOH electrolyte, KE series), but is more unique chemically. Because the sensor uses a weakly acidic electrolyte, the MAX-250B oxygen sensor is used in some applications such as radiation testing.
Specification
| Working life | 8 years |
| Signal output | 10-15.5mV |
| Measurement accuracy | 1% |
| Resolution | 0.1% |
| Working temperature | 5 to 40 ℃ |
| Working humidity | 0-95%RH |
| Response time | < 15s |
| Recommended load | 1M ohms |
| Zero voltage | < 0.5mV |
| Sampling interface | M16 x 1 thread |
| Sampling flow | minimum 3cc/minute, typical 100cc/minute |
| Cross-interference | less than 0.1% O2 response |
