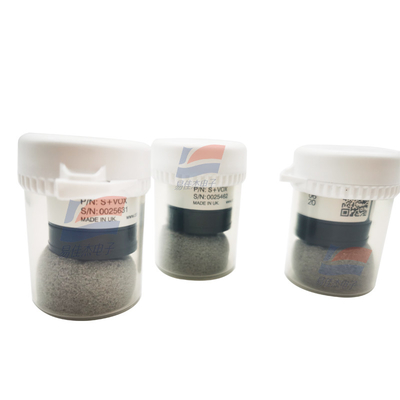

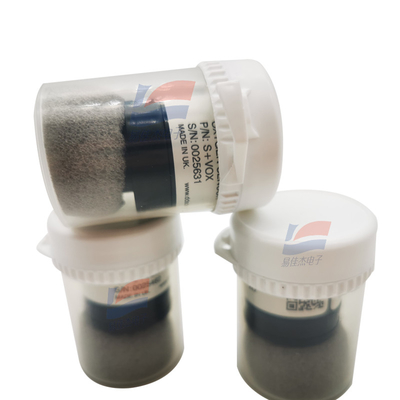

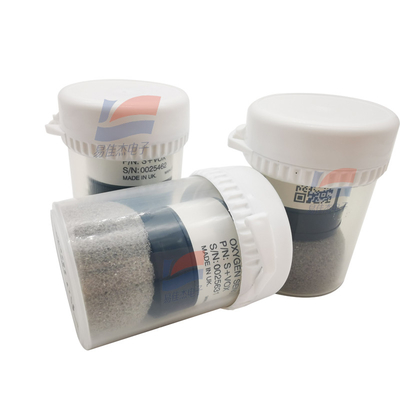

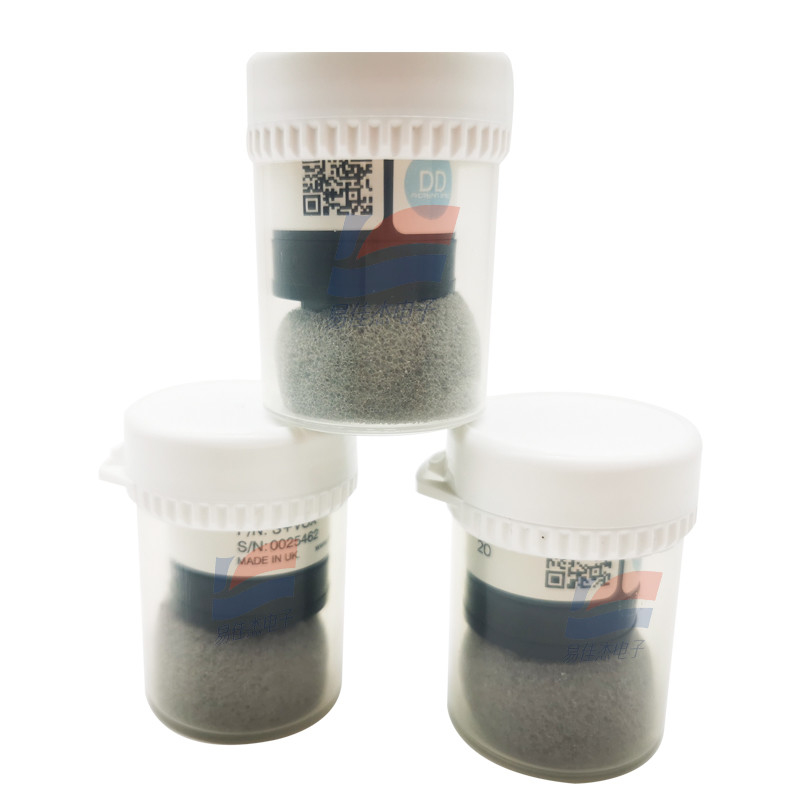

Ventilation S+VOX Gas Oxygen Sensor Electrochemical Concentration Detection

Typical Applications: Critical care anesthesia

Operating Temperature Range: -20°C to +50°C

Operating Pressure Range: 0.5 Bar to 2.0 Bar

Operating Humidity Range: 0% to 99% RH non-condensing

Output: 9-13 mV in 210mBar O2

Range: 0-1500mBar O2

Signal in 100% O2: 100±1%

Resolution: 1mBar O2

Product Type: Gas Oxygen Sensor

Life: 2 year

Measuring range: 0-25%

Anti-overload capability: 30%

Technology: Lead-free electrochemical

Measurement Range: 0.6% vol. O2 to 25% vol. O2

Maximum Overload: 30% vol. O2

Onboard Filter: None

Name: galvanic fuel cell oxygen sensor

Output signal In Air: 13-16mv

Circuit Interface: 3pin(molex)

Repeatability: <1% volume oxygen
