Product Details:
|
| Measurement Range: | 5000ppm | Sensitivity: | 55 ~ 90nA/ PPM |
|---|---|---|---|
| Response Time: | < 25s | Full Scale Linear Error: | 15-25ppm |
| Overload: | 10000 PPM | Resolution: | 0.5 PPM |
| Size: | 20.2 * 16.5 Φ | Service Life: | 2 Years |
Product Description:

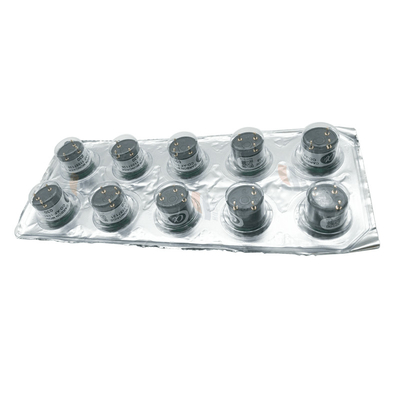

CO-AF Electrochemical Carbon Monoxide CO Sensor
Features:
A carbon monoxide sensor /CO sensor CO-AF description:
Carbon monoxide sensor CO-AF is the electrochemical principle of the sensor, electrochemical sensor has high sensitivity, good selectivity, low concentration output linear advantages, mainly used in the petrochemical industry, environmental protection, coal mine, automobile and other fields.
Two, carbon monoxide sensor /CO sensor CO-AF main characteristics:
Measurement range: 5000ppm
Sensitivity: 55 ~ 90nA/ PPM
Response time: < 25s
Full scale linear error: 15-25ppm
Overload: 10000 PPM
Resolution: 0.5 PPM
Size: 20.2 * 16.5 Φ
Service life: 2 years
Storage period: 6 months
Operating temperature: -30 ~ 50℃
Operating humidity: 15 ~ 90% RH
Load resistance: 10 ~ 47 ω
Three, carbon monoxide sensor /CO sensor CO-AF application
It is mainly used in petrochemical industry, environmental protection, coal mine, automobile and other fields.
Specifications:
| Sensitivity | nA/ppm in 400ppm CO |
| Response time | t90 (s) from zero to 400ppm CO |
| Zero current | ppm equivalent in zero air |
| Resolution | RMS noise (ppm equivalent) |
| Range | ppm CO limit of performance warranty |
