Product Details:
|
| Measurement Range: | 20ppm | Sensitivity: | -400 ~ -750 Na/PPM |
|---|---|---|---|
| Response Time: | < 50s | Linear Error: | < 1.5 Parts Per Million |
| Overload: | 100 PPM | Resolution: | 0.02 PPM |
| Size: | 20.2 * 16.5 Φ |
Product Description:

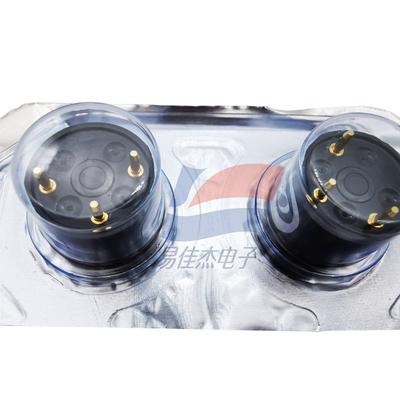

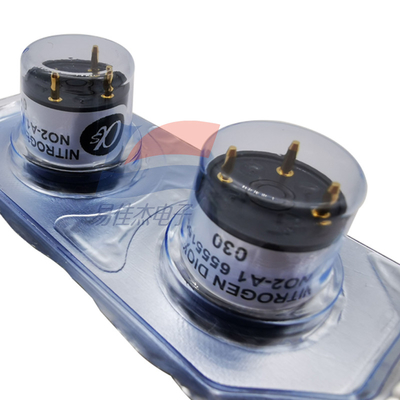

NO2-A1 Nitrogen Dioxide Sensor (Portable NO2 Sensor) For Nitrogen Dioxide Portable Monitor
Features:
PERFORMANCE Sensitivity nA/ppm in 10ppm NO2 -400 to -750
Response time t90 (s) from zero to 10ppm NO2 (33Ù Load Resistor) < 40
Zero current ppm equivalent in zero air < ± 0.2
Resolution RMS noise (ppm equivalent) (33Ù Load Resistor) < 0.02
Range ppm NO2 limit of performance warranty 20
Linearity ppm error at full scale, linear at zero and 10ppm NO2 < 1.5
Overgas range maximum ppm for stable response to gas pulse 100
LIFETIME Zero drift ppm equivalent change/year in lab air < 0.2
Sensitivitydrift % change/month in lab air, monthly test < 4
Operating life months until 80% original signal (24 month warranted) > 24
ENVIRONMENTAL Sensitivity @ -20°C% (output @ -20°C/output @ 20°C) @ 5ppm NO2 76 to 90
Sensitivity @ 50°C % (output @ 50°C/output @ 20°C) @ 5ppm NO2 101 to 110
Zero @ -20°C ppm equivalent change from 20°C < ± 0.1
Zero @ 50°C ppm equivalent change from 20°C < 0 to -0.4
Specifications:
| Service life | 2 years |
| Storage period | 6 months |
| Operating temperature | -20 ~ 50℃ |
| Operating humidity | 15 ~ 90% RH |
| Load resistance | 33 ω |
