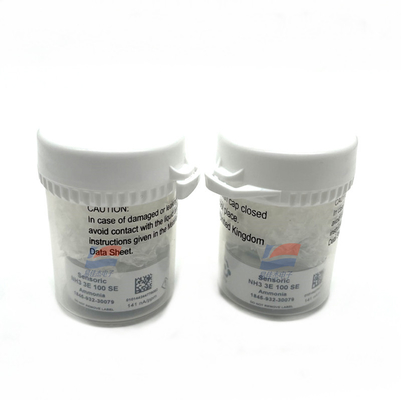

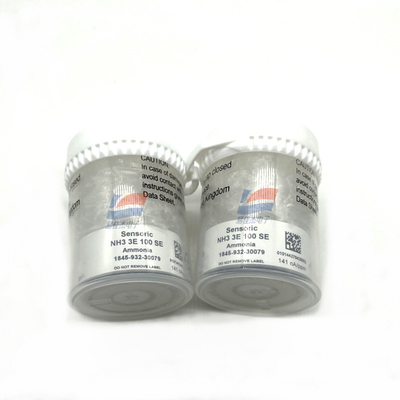

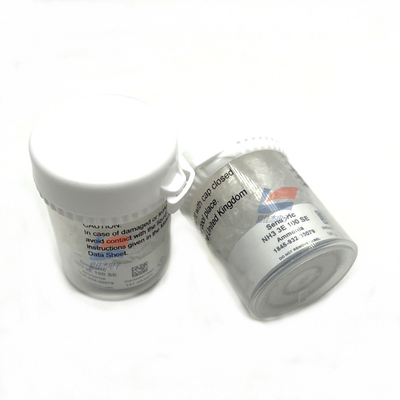

NH3 3E100SE NH3 3E 100 SE 1845-932-30079 Ammonia Sensor For Portable Gas Detector

Large Image : NH3 3E100SE NH3 3E 100 SE 1845-932-30079 Ammonia Sensor For Portable Gas Detector

Product Details:

Place of Origin:	Britain
Brand Name:	CITY
Model Number:	NH3 3E100SE NH3 3E 100 SE 1845-932-30079

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	canned
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	311/pcs/pre

Contact Now

NH3 3E100SE NH3 3E 100 SE 1845-932-30079 Ammonia Sensor For Portable Gas Detector

Description

Measuring Range:	0–100 Ppm	Sensitivity Range:	130 NA/ppm ± 30 NA/ppm
Zero Current At 20°C:	< ± 100 NA	Resolution At 20°C:	< 1 Ppm
Bias Potential:	0 MV	Linearity:	< 10% Full Scale
Highlight:	3E100SE Ammonia Sensor , Portable Gas Detector Ammonia Sensor , NH3 3E100SE Ammonia Sensor

Product Description:

NH3 3E100SE NH3 3E 100 SE 1845-932-30079 Ammonia Sensor For Portable Gas Detector

Features:

Response Time at 20°C

t50 < 20 s calculated from 5 min. exposure time

t90 < 60 s calculated from 5 min. exposure time

Long Term Sensitivity Drift < 5% per 6 months

Operation Conditions

Temperature Range -20°C to +40°C

Humidity Range 15–90% r.H, non–condensing

Effect of Humidity

Sensor Life Expectancy > 24 months in air*

FEATURES

Amperometric 3 electrode sensor cell

Very stable zero reading

Very selective

Highly sensitive

Hydrous electrolyte

TYPICAL APPLICATIONS

TLV-monitoring, leakage detection

portable & fixed point applications

Food & Refrigeration Industry, General Industry, Semiconductor Industry

PART NUMBER INFORMATION

MINI 1845-932-30009

SENSORIC CLASSIC 1845-932-30069

CTL 4 series adaptation 1845-932-30049

CTL 7 series adaptation 1845-932-30079

Specifications:

Gas	Concentration	Reading [ppm]
Alcohols	1000 ppm	0
Carbon Dioxide	5000 ppm	0
Carbon Monoxide	100 ppm	0
Hydrocarbons	% range	0
Hydrogen	10000 ppm	0
Hydrogen Sulfide	20 ppm	21

NH3 3E100SE NH3 3E 100 SE 1845-932-30079 Ammonia Sensor For Portable Gas Detector 0
