Product Details:
|
| Measuring Range: | 0-2000ppm | Can Be Used In: | Extremely Harsh Environment |
|---|---|---|---|
| Excellent: | Cost Performance Advantage | Life Span: | More Than Two Years |
| Highlight: | Electrochemical Carbon Monoxide Gas Sensor |
||
Product Description:

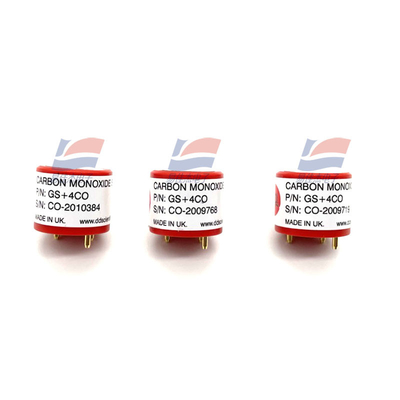

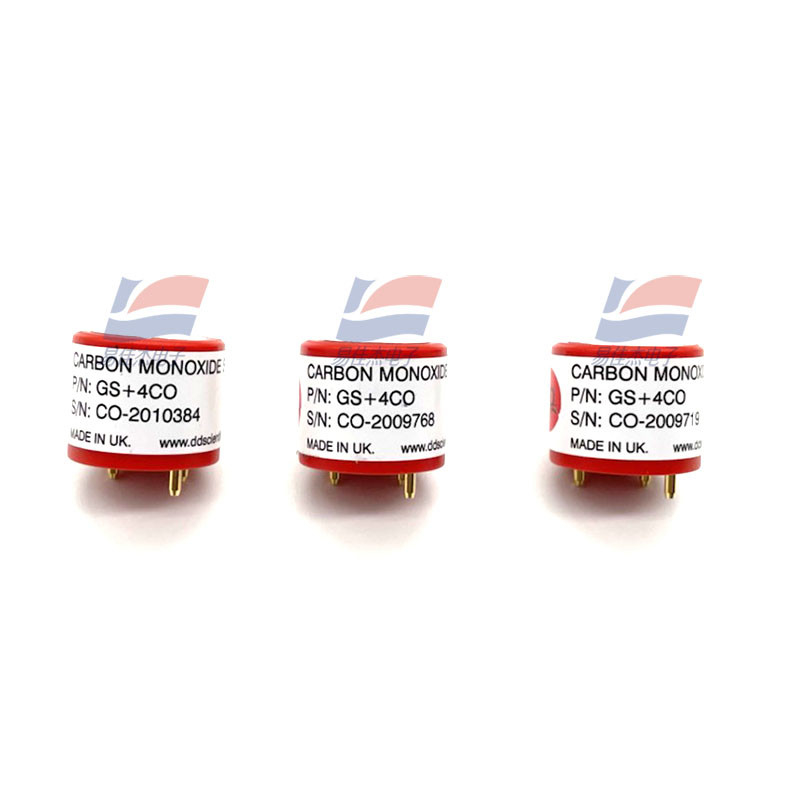

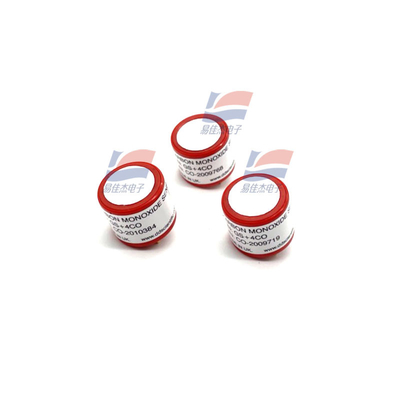

GS+4CO Industrial Grade Electrochemical Carbon Monoxide Gas Sensor
Features:
GS + 4 CO, industrial-grade electrochemical carbon monoxide gas sensor can be applied to a variety of demanding industrial environments, including petroleum, chemical, mining, electricity and the gas such as monitoring of urban underground pipe and industrial production safety, standard industrial department of 4 encapsulation, coal mine, petroleum chemical industry environment safety monitoring of the intelligent portable table closed gas monitoring, etc
Output signal: 15± 5 nA/PPM
Typical baseline range (pure air) : < Plus or minus 10 PPM CO equivalent
T90 time: & LT; 30 seconds
Measurement range: 0-40000 PPM
* Maximum overload: 100,000 PPM
Linear range: linear
Repeatability: < Plus or minus 1% CO equivalent
Recommended load resistance: 10 ohms
Resolution (circuit dependent) : < 1 PPM typical value
Environmental Data:
Continuous temperature range: -30℃ to +50℃
Pressure range: 800 to 1200 mbar
Operating humidity: 15 % to 90% RH
Specifications:
| Measurement gas | CO |
| Model | GS+4CO |
| Long-term drift | < 5% per year |
| Recommended storage temperature | 0°C to 20°C |
| Expected working life | 48 months |
| Warranty | 12 months from delivery |
