Product Details:
|
| Combustible Gas Detection Range: | 1~25%LEL | Sensitivity (resistance Ratio): | 0.50 ~ 0.65 |
|---|---|---|---|
| Heater Voltage: | 5.0±0.2V DC/AC | Circuit Voltage: | 5.0±0.2V DC/AC |
| Highlight: | TGS2612 Combustible Gas Sensor,Household Combustible Gas Sensor,Household Gas Sensor |
||
Product Description:

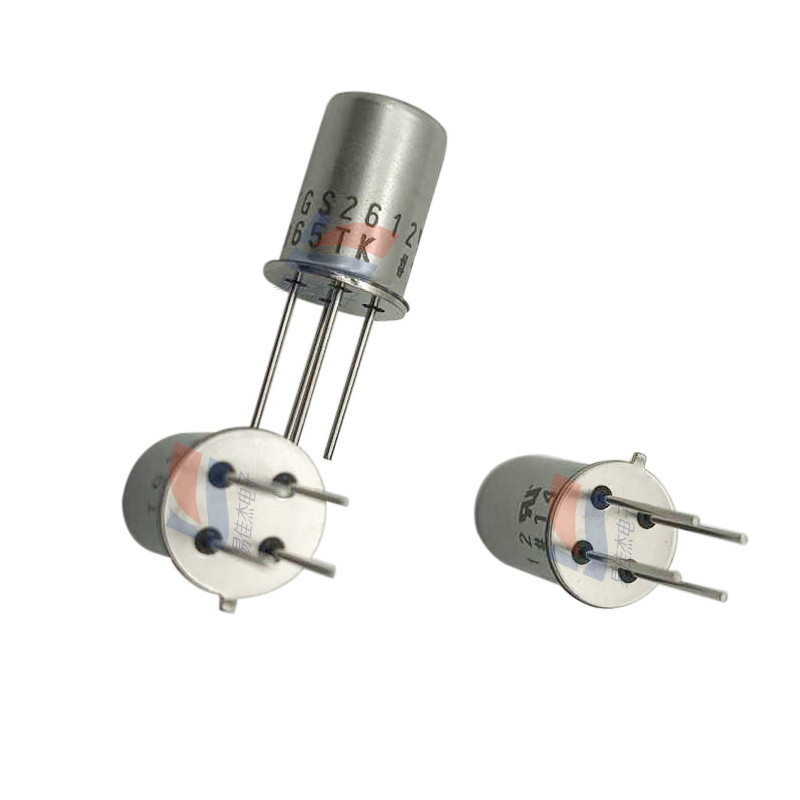

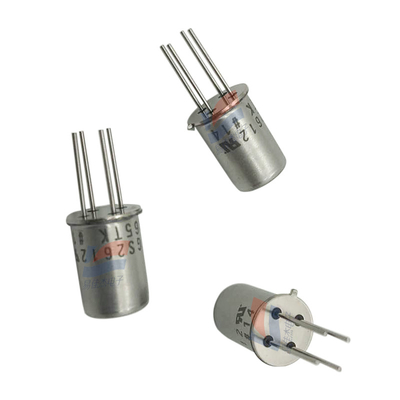

TGS2612 Combustible Gas Sensor Can Be Used In Household Combustible Gas Alarm
Features:
sensitizer consists of an integrated heater and a metal oxide semiconductor structure on an alumina substrate
The higher the concentration of the gas, the higher the conductivity of the sensor, when the air is detected in the presence of the gas. into
Changes in electrical conductivity can be converted to the gas using a simple circuit. Will be higher
. The concentration corresponds to the signal output
It is highly sensitive to LNG and propane and butane gases, and TGS2612 to methane
Residential environments commonly dry (due to their volatile nature to alcohol. LPG is the most ideal sensor
It IS ideal for the consumer market for gas leakage, very low sensitivity) disturbed gases
The heater current of TGS2612 is only, due to the small volume of sensitizer. Sensor of alarm
Low power consumption;
Can simultaneously measure liquefied gas and natural gas;
Long life, low cost; The application circuit is simple.
Typical applications of combustible gas sensor TGS2612:
LNG and LPG detectors; Household combustible gas alarm, etc
Specifications:
| oxide semiconductor type | Detection principle |
| Standard package | Metal 5-TO |
| object gases | Isobutane, propane, methane |
| Preheating time | 7 days |
