NAP-50A Catalytic Pellistor Gas Sensor Light Commercial Applications All Flammable Gases

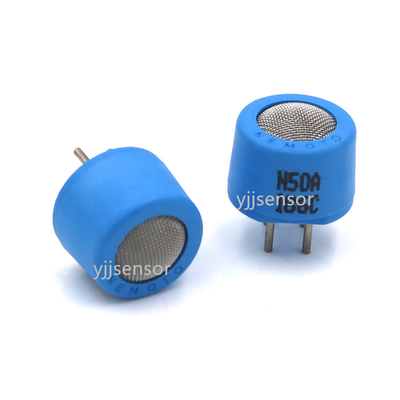

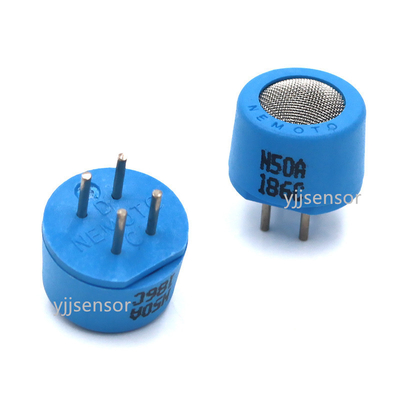

Large Image : NAP-50A Catalytic Pellistor Gas Sensor Light Commercial Applications All Flammable Gases

Product Details:

Place of Origin:	Japan
Brand Name:	Nemoto
Model Number:	NAP-50A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

NAP-50A Catalytic Pellistor Gas Sensor Light Commercial Applications All Flammable Gases

Description

Power Supply Voltage:

2.5 + / - 0.25 V DC

Current 2V Power Supply:

DC 150 ~ 170mA

Environment Temperature:

Operate At -10 By 50°C

Store At:

10 By 50°C

Highlight:

Small Volume Gas Sensor

Low Power Consumption Gas Sensor

Product Description:

NAP-50A Catalytic Pellistor Gas Sensor Light Commercial Applications All Flammable Gases

Features:

Nap-50a is a small size and low power sensor. Nap-50a is mainly used for gas detection. Compared with NAP-55A, NAP-50A has less interference to the alarm caused by alcohol, and the gas detector made by NAP-50A is more reliable. The following are the basic parameters, but it is for civilian use, see the user manual for more information. Refer to the sensor test circuit of NAP-66A.

*Measures flammability directly

*Highly resistant to Catalyst poisons

*Complies with EN50194 standard

*Effectively Linear output to 50%LEL

*Specific to flammable gases

*Unaffected by Humidity

*Very Simple circuitry

*Very Low Long term drift

Specifications:

Detectable Gas	All Flammable Gases
Detection range	0-50% LEL
Voltage supply	2.5V +- 0.2V
Current drawn	170mA +-10 mA
Signal Sensitivity	37-53mV/% CH4
Zero Offset (20oC)	0mV +- 35mV
Response time (90%)	<10 seconds
Accuracy	+- 1% LEL
Expected lifetime	>3 years
Long Term Span Drift	<+- 2% FSD/ month
Long Term Zero Drift	<+1-2mV/year

NAP-50A Catalytic Pellistor Gas Sensor Light Commercial Applications All Flammable Gases 0
