Product Details:
|
| Part Number: | C06-0801-000 | Target Gas: | CO2 |
|---|---|---|---|
| Operating Principle: | Non-dispersive Infrared (NDIR) | Standard Range: | 400 To 2000 Ppm |
| Measurement Interval: | 4 Seconds | ||
| Highlight: | 2000 ppm Carbon Dioxide Sensor,2000 ppm Commercial Carbon Dioxide Sensor,400 ppm Carbon Dioxide Sensor |
||
Product Description:

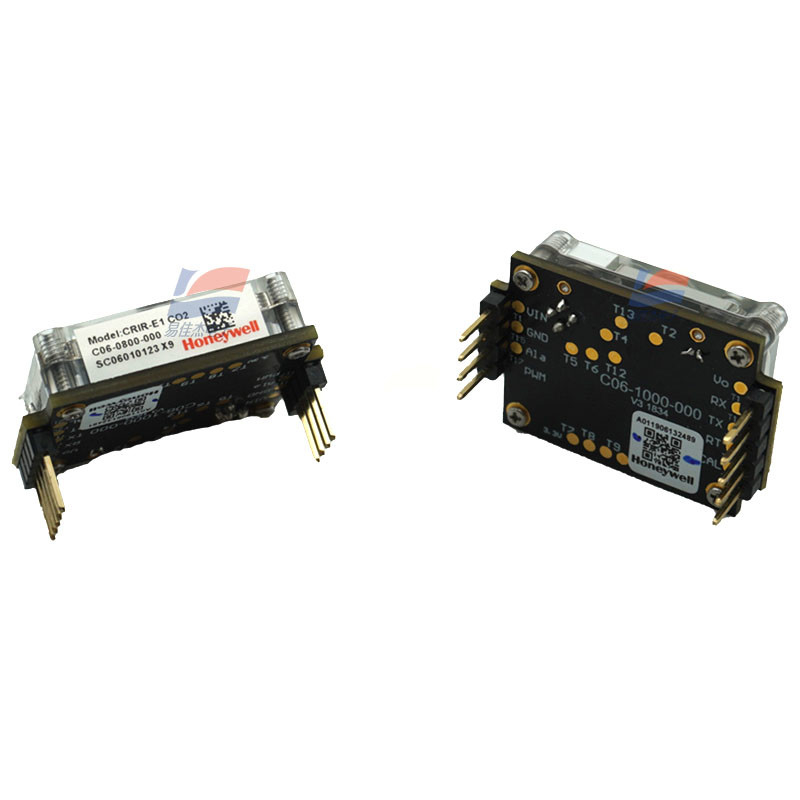

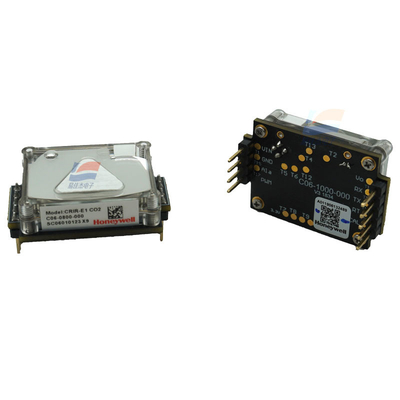

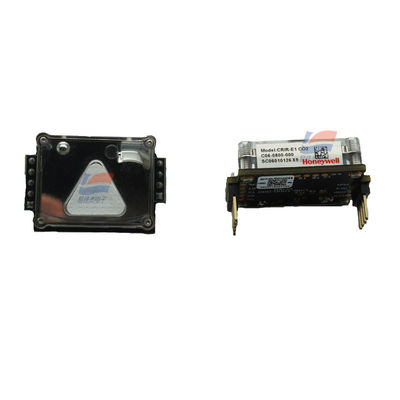

CRIR E1 Commercial Carbon Dioxide Sensor 400-2000 ppm
Features:
Temperature Range 0 oC to 50 oC
Operating Humidity 0 to 90 %RH non condensed
Storage Temperature -40 oC to 70 oC
Expected Operating Life 10 years
Operation Voltage 4.5 to 5.5V unprotected against
Surges and reverse connection
Power Consumption 300mA peak, 30mA average
Alarm output, open collector 1000/800ppm Normal state is
conducting max 100mA. Transistor
open at CO2 High, OR Power Low,
or at Sensor Failure
Serial Communication UART, Modbus protocol
PWM Output, 1KHZ 0 to 100% duty cycle for
0 to 2000ppm,3.3V push-pull
CMOS output, unprotect
Maintenance Maintenance-free for normal
indoor application
Physical Characteristics
Weight ＜8 g
Size 33.5*22.5*11.5mm (max)
Outline Dimensions
All dimensions are in millimeters
All tolerances are 0.2 mm
|
Pin Definition 1 |
DAC or DVCC (3.3V) |
|
2 |
UART_RXD |
|
3 |
UART_TXD |
|
4 |
UART_R/T |
|
5 |
bCAL_in /CAL_in |
|
6 |
PWM Output |
|
7 |
Alarm output |
|
8 |
GND |
|
9 |
Vin _(4.5~5.5V) |
Specifications:
|
Accuracy |
±50ppm ±5% of reading |
|
Response Time (T90) |
£ 120 seconds |
|
Sensor Warm up Time |
3 mins (typically) |
|
Repeatability |
> 97% |
