Product Details:
|
| Product Model: | ZP01 Air Quality Module | Gas Detection: | Formaldehyde, Benzene, Carbon Monoxide, Hydrogen, Alcohol, Ammonia, Cigarette Smoke, Essence, Etc |
|---|---|---|---|
| Physical Interface: | XH2.54-4P Terminal Socket | Output Data: | 0-3 Pollution Signal |
| Highlight: | ZP01 Air Quality Module Chip,Thick Film Semiconductor Gas Sensor |
||

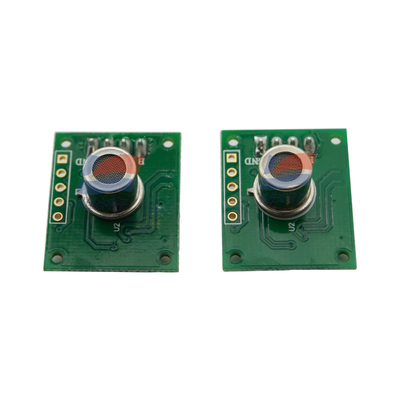

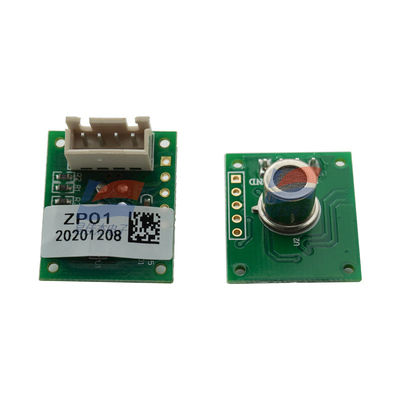

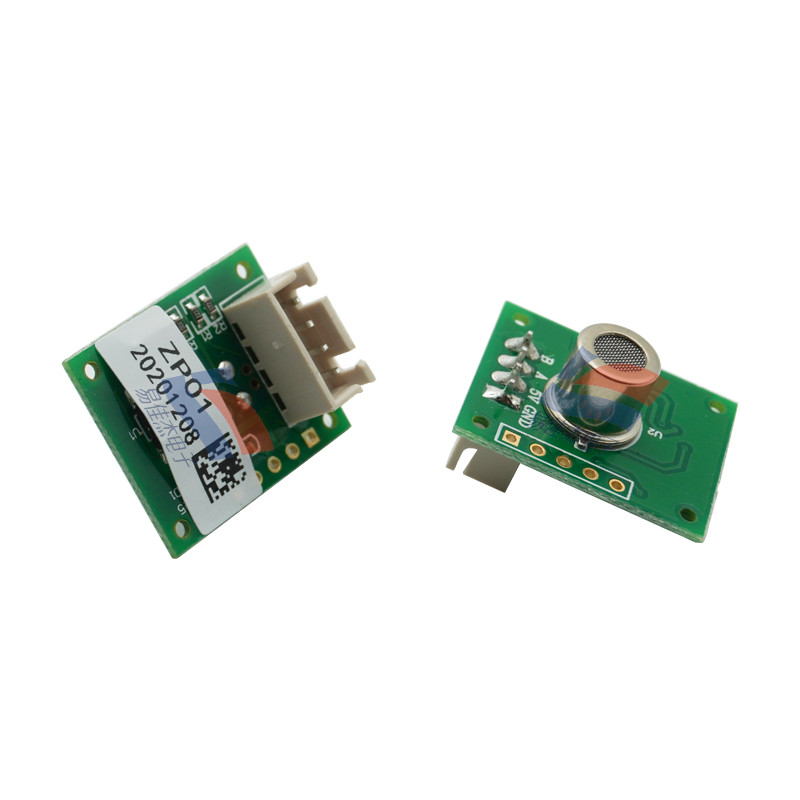

ZP01 Air Quality Module Chip Thick Film Semiconductor Gas Sensor
ZP01 air quality module adopts advanced chip thick film semiconductor gas sensor. The sensor has extremely high sensitivity to organic volatile gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol, cigarette smoke, and essence. The module has been aged, debugged, calibrated and calibrated, and has good consistency and high sensitivity.
Specification Sheet:
| Working voltage | 5.0V±0.2V DC (no voltage reverse polarity protection) |
| Output data | TTL level (built-in 200Ω protection resistor) |
| Working current | ≤60mA |
| Warm-up time | ≤3 minutes |
| Response time | ≤20 seconds |
| Recovery time | ≤60 seconds |
| Working temperature | 0～50℃ |
| Working humidity | ≤95%RH |
| Storage temperature | -20～60℃ |
| Storage humidity | ≤60%RH |
| Dimensions | 24×20×16mm (L×W×H) |
| Weight | ≤20g |
| Sensitivity attenuation | ≤1%/year |
