Product Details:
|
| Product Model: | ZP16 Air Quality Module | Detection Gas: | Formaldehyde, Benzene, Carbon Monoxide, Hydrogen, Alcohol, Ammonia |
|---|---|---|---|
| Organic Volatile Gases: | Cigarette Smoke And Flavors | Physical Interface: | XH2.54-4P Pin |
| Highlight: | ZP16 Air Quality Module |
||

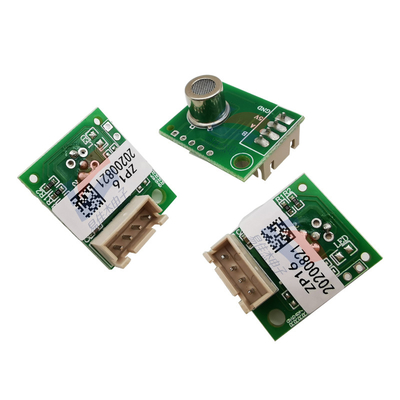

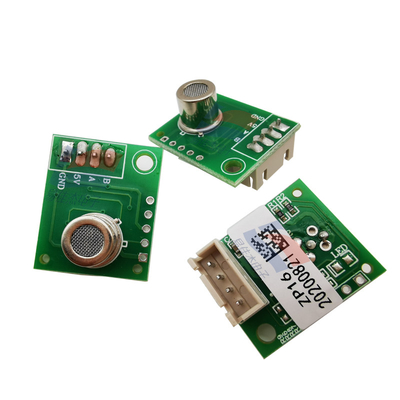

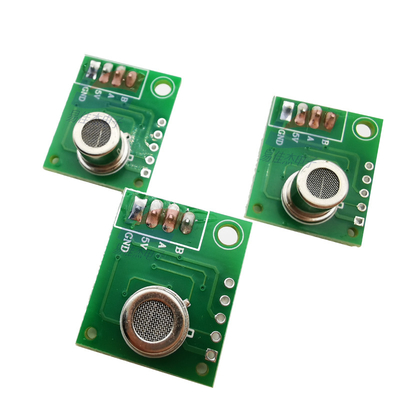

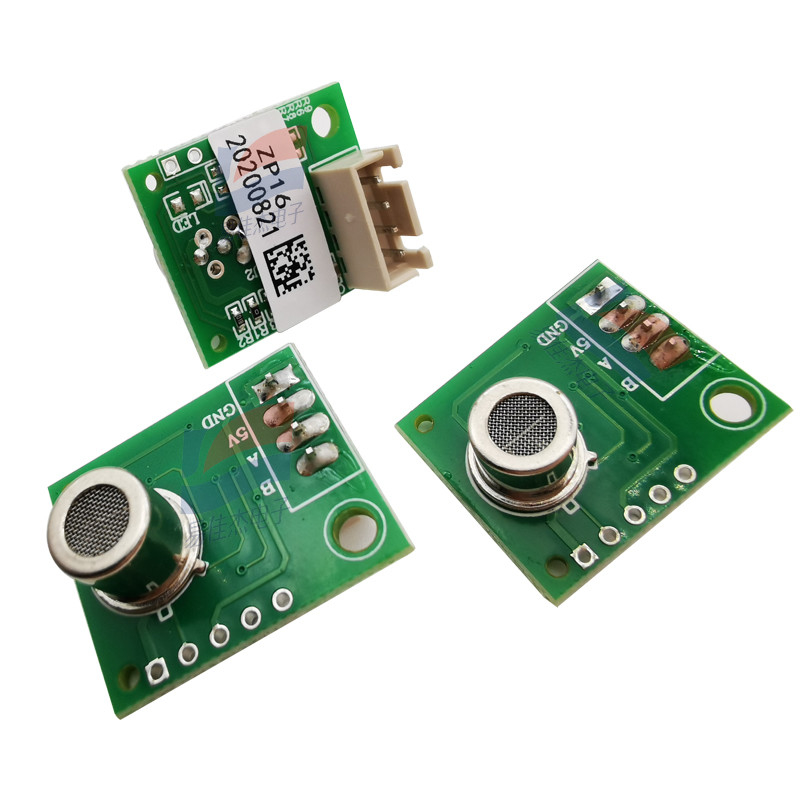

ZP16 Air Quality Module Low Power Consumption
The air quality module adopts advanced chip thick film semiconductor gas sensor, which has extremely high sensitivity to organic volatile gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol, cigarette smoke, and essence. The module has been aged, debugged, calibrated and calibrated, and has good consistency and extremely high sensitivity.
Datasheet:
| Range | 0-10mg/m3 |
| Resolution | 0.05mg/m3 |
| Working voltage | 5.0±0.2V DC (no voltage reverse polarity protection) |
| Output data type | UART(5V) output |
| Working current | ≤60mA |
| Warm-up time | 3 minutes |
| Working temperature | 0～50℃ |
| Working humidity | ≤95%RH |
| Storage temperature | -20～60℃ |
| Storage humidity | ≤60%RH |
| Dimensions | 24×20×18mm (L×W×H) |
| Weight | ≤20g |
| Sensitivity attenuation | ≤1%/year |
