Product Details:
|
Detection: | Gas Ammonia (NH3) | Product Type: | Electrochemical Gas Sensor |
---|---|---|---|
Range: | 0~100ppm | Maximum Measurement Limit: | 200ppm |
Highlight: | ME3-NH3,NH3 gas Sensor |

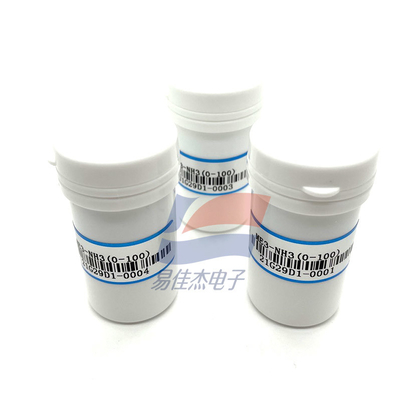

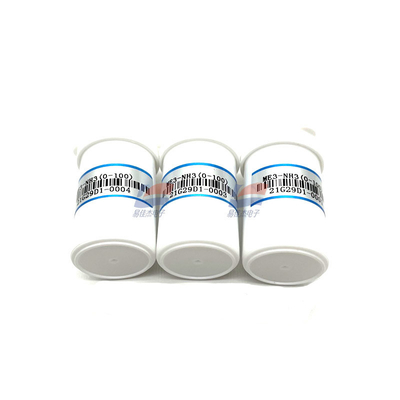

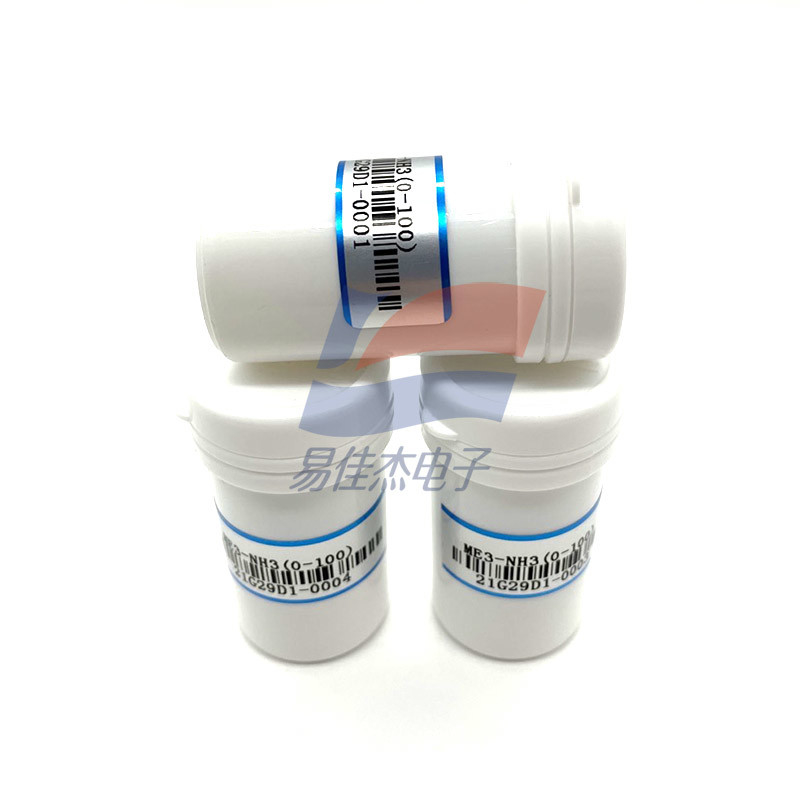

ME3-NH3 Ammonia Gas Sensor Electrochemical Principles
ME3-NH3 electrochemical gas sensor is based on the principle of electrochemistry, using the measured gas to undergo corresponding redox reactions on the working electrode and counter electrode of the sensor and release charges, and form a current through an external circuit. The current size is proportional to the gas concentration, thereby Realize quantitative measurement of target gas.
Datasheet:
Sensitivity | (80~160) uA/ppm |
Resolution | 0.5ppm |
Response time (T90) | ≤60S |
Bias 0mV | 0mV |
Load resistance | (recommended) 10Ω |
Repeatability | <10% output value |
Stability (/month) | <10% |
Output Linearity | Linearity |
Zero drift | (-20℃~40℃) -3~10ppm |
Temperature range | ﹣20℃~50℃ |
Humidity range | 15﹪~ 90﹪RH non-condensing |
Pressure range | Standard atmospheric pressure ±10% |
Service life | 2 years (2ppmNH3) |
