Product Details:
|
| Operation Principle: | 3-Electrode Electrochemical | Nominal Range: | 0 - 1 Ppm |
|---|---|---|---|
| Maximum Overload: | 5 Ppm | Output Signal: | 4200 ± 800 NA/ppm |
| Highlight: | Process Control Arsine Gas Sensor,Safety Arsine Gas Sensor |
||

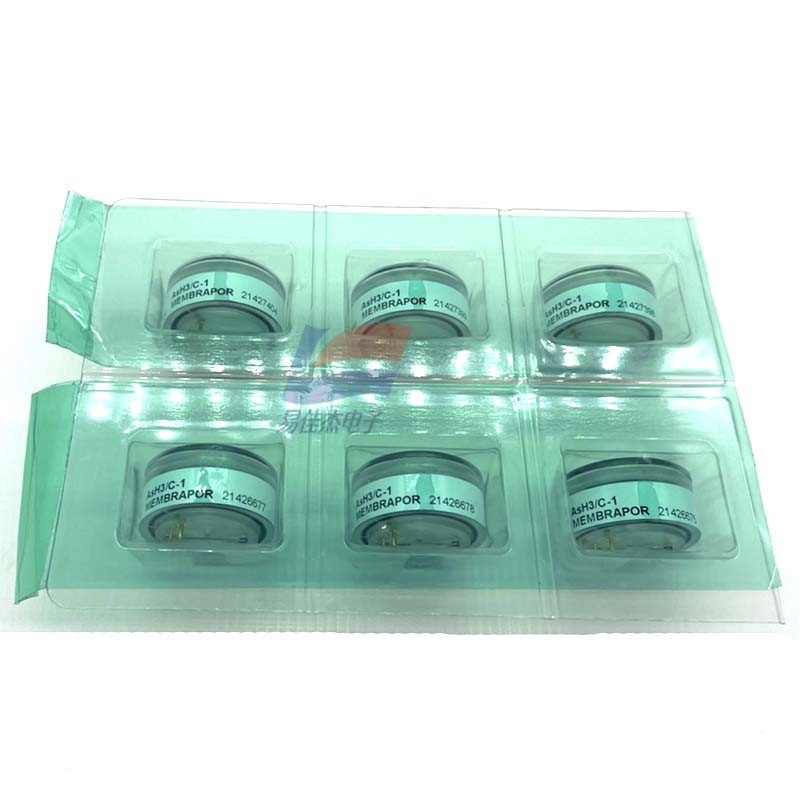

AsH3/C-1 Arsine Gas Sensor Safety and Process Control
Performance data recorded at 20 – 25 °C, 30 - 50% RH, 900 - 1100 mbar
For further information about usage of Membrapor sensors, see application note MEM1.
The data contained in this document is for guidance only. Membrapor AG accepts no liability for any consequential losses, injury or damage resulting from the use of this document or from any omissions or errors herein. Customers should test under their own conditions to ensure that the
sensors are suitable for their own requirements.
Datasheet:
| Rec. Load Resistor | 10 - 33 Ω |
| Bias (V_Sens-V_Ref) | not recommended |
| Relative Humidity | Range 15 % to 90 % RH non-condensing |
| Temperature Range | -10 °C to 50 °C |
| Pressure Range Atmospheric | ± 10% |
| Pressure Coefficient | N.D. |
| Humidity Effect | None |
