Product Details:
|
| Detection: | Gas Hydrogen Chloride (HCl) | Range: | 0~20ppm |
|---|---|---|---|
| Maximum Measurement: | Limit 200ppm | Name: | Hydrogen Chloride Sensor |
| Highlight: | ME3-HCl hydrogen chloride sensor,Electrochemical hydrogen chloride sensor,ME3-HCl hcl gas sensor |
||

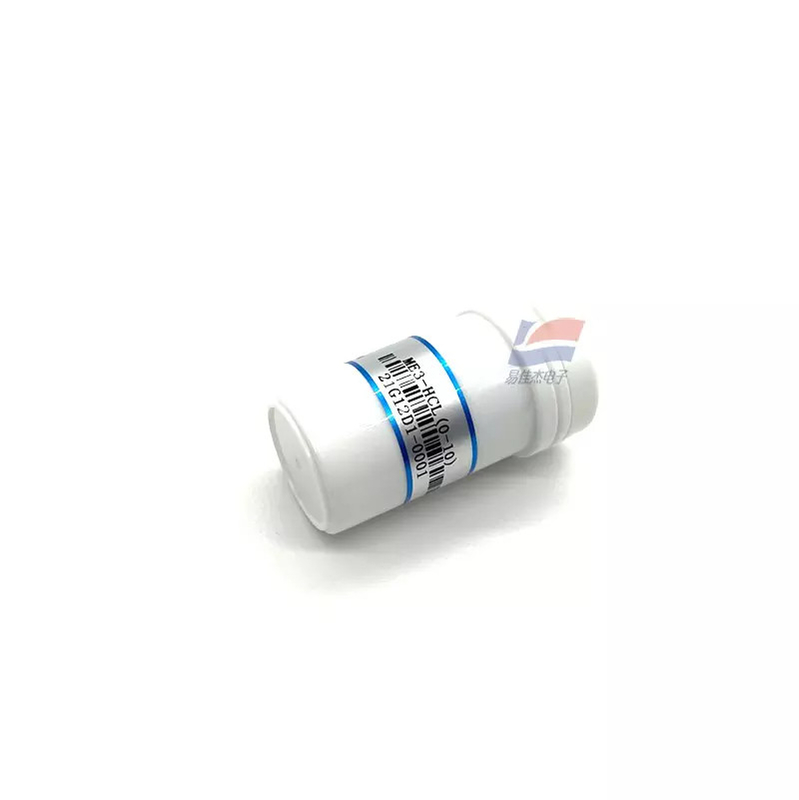

ME3-HCl Hydrogen Chloride Sensor Electrochemical Principles
ME3-HCl electrochemical gas sensor is based on the principle of electrochemistry, using the gas to be measured to have corresponding redox reactions on the working electrode and counter electrode of the sensor and release the charge, and form a current through the external circuit. The current size is proportional to the gas concentration, thereby Realize quantitative measurement of target gas.
Datasheet:
| Sensitivity | (0.4～0.8)uA/ppm |
| Resolution | 0.1ppm |
| Response time | (T90) ≤30S |
| Bias | 0mV |
| Load resistance (recommended) | 10 Ω |
| Repeatability | ＜2﹪Output value |
