Product Details:
|
| Operation Principle: | 3-Electrode Electrochemical | Nominal Range: | 0 - 25 Ppm |
|---|---|---|---|
| Maximum Overload: | 50 Ppm | Output Signal 2000: | ± 400 NA/ppm |
| Highlight: | NO/S-25 Nitric Oxide Gas Sensor,50 ppm Nitric Oxide Gas Sensor,0.05 ppm Resolution nitric oxide sensor |
||

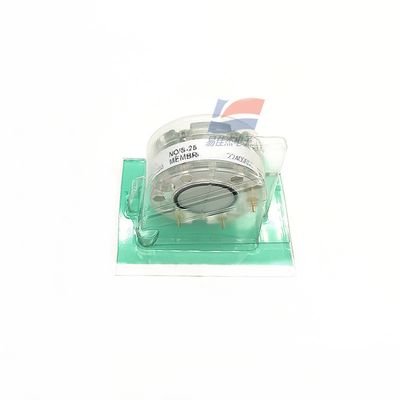

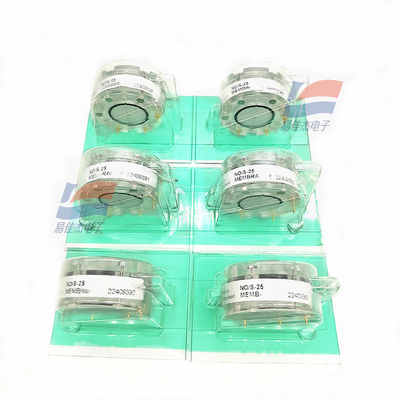

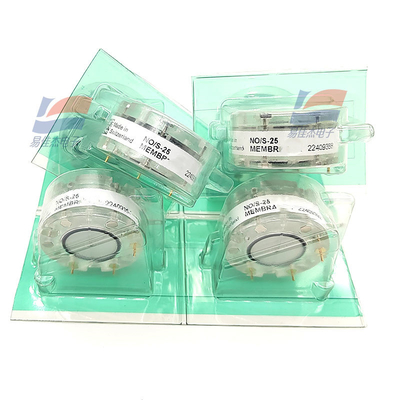

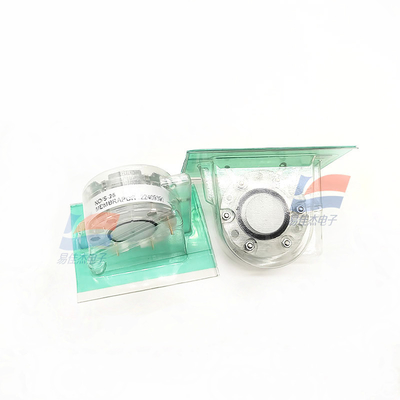

NO/S-25 Nitric Oxide Gas Sensor 3-Electrode Electrochemical In Standard Housing
Applications
• Continuous Air Quality Monitoring
• Safety and Environmental Control
Performance data recorded at 20 – 25 °C, 30 - 50% RH, 900 - 1100 mbar
The data contained in this document is for guidance only. Membrapor AG accepts no liability for any consequential losses, injury or damage resulting from the use of this document or from any omissions or errors herein. Customers should test under their own conditions to ensure that the sensors are suitable for their own requirements.
Datasheet:
| Resolution (Electronics dependent) | < 0.05 ppm |
| T90 Response Time | < 10 s |
| Typical Baseline Range | (pure air, 20°C) 0.2 ppm to 1 ppm 1) |
| Maximum Zero Shift | (+20°C to +40°C) 1.8 ppm |
| Repeatability | < 2 % of signal |
