Product Details:
|
| Product Number: | MMD1001E | Gas Detection: | Formaldehyde (CH2O) |
|---|---|---|---|
| Interfering Gas: | Alcohol, Carbon Monoxide And Other Gases | Output Data: | UART Output (3.3V Level) |
| Highlight: | MMD1001E Electrochemical Formaldehyde Sensor,CH2O Electrochemical Formaldehyde Sensor,MMD1001E CH2O Sensor |
||

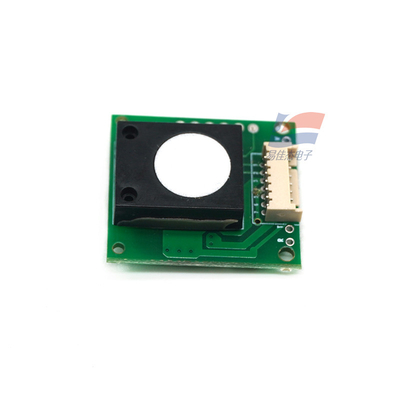

MMD1001E Electrochemical Formaldehyde Sensor Module Miniaturized
MMD1001E Electrochemical Formaldehyde Module Miniaturized
MMD1001E electrochemical formaldehyde module is a general-purpose, miniaturized module. Using electrochemical principles to detect CH2O in the air, it has good selectivity and stability. Built-in temperature sensor for temperature compensation; also has digital output and analog voltage output mode, easy to use. MMD1001E is a general-purpose gas module designed and manufactured by combining mature electrochemical detection technology with sophisticated circuit design.
Datasheet:
| Warm-up time | ≤3 minutes |
| Response time | ≤60 seconds |
| Recovery time | ≤60 seconds |
| Range | 0～5ppm |
| Resolution | ≤0.01ppm |
| Working temperature | -20℃～50℃ |
| Working humidity | 15%RH-90%RH (non-condensing) |
| Storage temperature | 0～25℃ |
| Service life | 2 years (0°C to 35°C in air) |
| Module size | Length23mm×width25.5mm×height 6.5mm |
