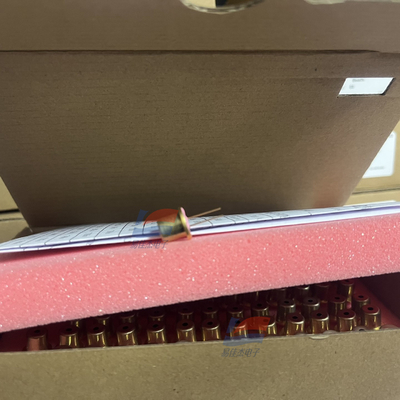

CAT16 2111B2016 Combustible Gas Sensor Constant Current

CAT16 2111B2016 Combustible Gas Sensor Constant Current

Features:

Working voltage 2.7v + 0.2v

The operating current of 200 MA power consumes 580 MW at a methane concentration of 5% v/v

Air with an expected service life of more than 5 years

Output sensitivity > 12 mv / % methane

Temperature range -40°C + 50°C

Pressure range 1 atm + 10%

Humidity range (without condensation) Continuous: 15-90% RH

Intermittent: 0-99% RH

Response time (T590) < 10 seconds

Long term zero drift. + 3% LEL methane per year

Long span drift < + 3% LEL methane per year

Linear + 10% LEL lower explosive limit for poison resistance

Hexamethyl-Disiloxane is very high

Hydrogen sulfide is very high

Physical specification

Can type off

Store in an airtight container for 6 months

Storage conditions 10-20 °

In clean air C, 45-75% RH

Specifications:
