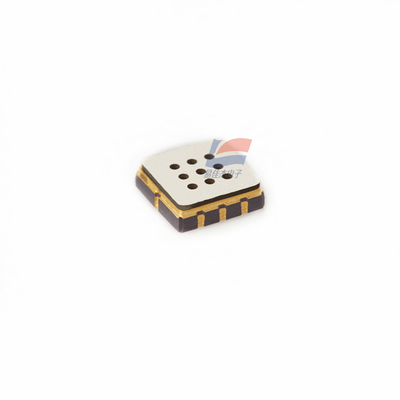

MEMS Breath Gas Sensor GM 512B For Mini Smell Breath Detector

MEMS Breath Gas Sensor GM 512B For Mini Smell Breath Detector
MEMS Breath Gas Sensor GM 512B For Mini Smell Breath Detector

Large Image :  MEMS Breath Gas Sensor GM 512B For Mini Smell Breath Detector

Product Details:
Place of Origin: CHINA
Brand Name: YJJ
Model Number: GM-512B
Payment & Shipping Terms:
Minimum Order Quantity: 5
Packaging Details: Tubes of
Delivery Time: 3-5work days
Supply Ability: 1501/pcs/pre

MEMS Breath Gas Sensor GM 512B For Mini Smell Breath Detector

Description
Loop Voltage: Vc ≤24V DC Heating Voltage: VH 2.5V±0.1V ACorDC
Load Resistance: RL Is Adjustable Heating Resistance: RH 80Ω±20Ω (room Temperature)
Highlight:

MEMS Breath Gas Sensor

,

GM 512B Gas Sensor

,

GM 512B Breath Detector

MEMS Breath Gas Sensor GM 512B For Mini Smell Breath Detector



Mini Breath Detector With MEMS Breath Gas Sensor GM-512B



Features:

MEMS breath gas sensor uses MEMS process to make micro-hot plate on Si substrate. The gas-sensitive material used is metal oxide semiconductor material with low conductivity in clean air. When the detected gas exists in the ambient air, the conductivity of the sensor changes. The higher the concentration of the gas, the higher the conductivity of the sensor. A simple circuit is used to convert the change in conductivity into an output signal corresponding to the concentration of the gas.

MEMS process, strong structure, high sensitivity to hydrogen sulfide, alcohol, acetone, etc

Small size, low power consumption, high sensitivity, fast response recovery

The driving circuit is simple, stable and long life



Specifications:

Product type MEMS breath gas sensor
Standard package ceramic package
Detection gas hydrogen sulfide, alcohol, acetone, etc
Detection concentration 0.5ppm-50ppm(H2S)
