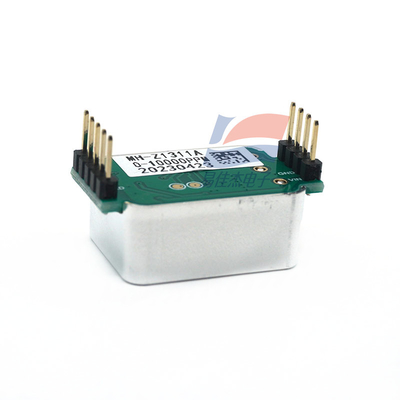

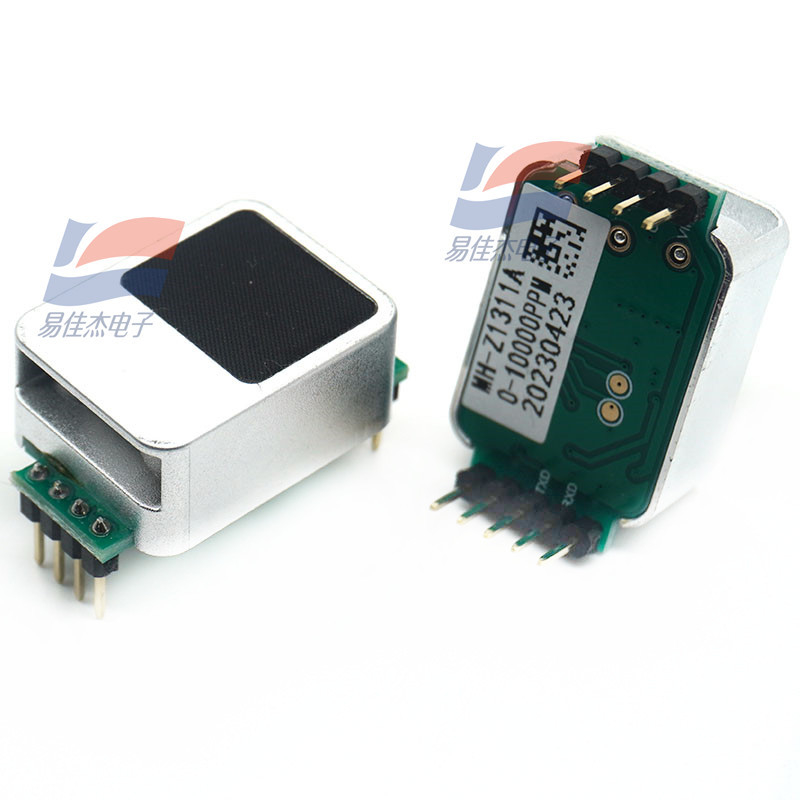

MH-Z1311A Carbon Dioxide Gas Sensor Nondispersive Infrared NDIR Principle

I'm Online Chat Now

MH-Z1311A Carbon Dioxide Gas Sensor Nondispersive Infrared NDIR Principle

MH-Z1311A Carbon Dioxide Gas Sensor Nondispersive Infrared NDIR Principle
MH-Z1311A Carbon Dioxide Gas Sensor Nondispersive Infrared NDIR Principle MH-Z1311A Carbon Dioxide Gas Sensor Nondispersive Infrared NDIR Principle

Large Image :  MH-Z1311A Carbon Dioxide Gas Sensor Nondispersive Infrared NDIR Principle

Product Details:
Place of Origin: CHINA
Brand Name: Winsen
Model Number: MH-Z1311A
Payment & Shipping Terms:
Minimum Order Quantity: 5
Packaging Details: trays
Delivery Time: 3-5work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1501/pcs/pre

MH-Z1311A Carbon Dioxide Gas Sensor Nondispersive Infrared NDIR Principle

Description
Interface Level: 3.3V Measuring Range: 0~10000ppm
Output Signal: Serial Port (UART)(TTL Level 3.3V) Preheating Time: 10s
Highlight:

Nondispersive Infrared Carbon Dioxide Gas Sensor

,

NDIR Carbon Dioxide Sensor

,

MH-Z1311A Carbon Dioxide Monitor

MH-Z1311A Carbon Dioxide Gas Sensor Nondispersive Infrared NDIR Principle



Nondispersive Infrared (NDIR) Principle MH-Z1311A Carbon Dioxide Gas Sensor



Features:

MH-Z1311A carbon dioxide gas sensor (hereinafter referred to as the sensor) is a general purpose, small sensor, using non-dispersive infrared (NDIR) principle to detect CO2 in air, with good selectivity, no oxygen dependence, long life, built-in temperature compensation, digital output, easy to use. The sensor is a high performance sensor made by combining mature infrared gas detection technology with precise optical path design and sophisticated circuit design.

Main application

Hvac refrigeration equipment, air quality monitoring equipment, fresh air system, air purification equipment, smart home



Specifications:

Detected gas carbon dioxide
Supply voltage DC(5.0±0.1)V
Average current < 800uA
Peak current 90 mA



MH-Z1311A Carbon Dioxide Gas Sensor Nondispersive Infrared NDIR Principle 0MH-Z1311A Carbon Dioxide Gas Sensor Nondispersive Infrared NDIR Principle 1
