Product Details:
|
Supply Voltage: | 3.2 VDC (+5%) | Average Current Consumption: | 30mA |
---|---|---|---|
Operating Humidity: | 0% | Storage Humidity: | 50% |
Highlight: | Infrared Carbon Dioxide Probe,Corrosion Resistance Carbon Dioxide Probe,Blackbody Lighting CO2 Probe Sensor |

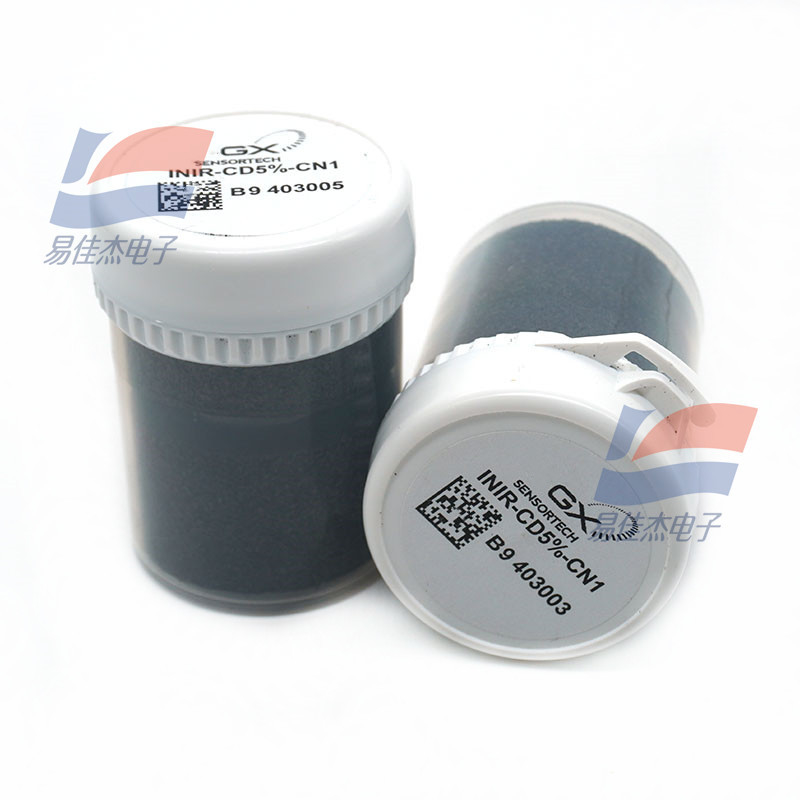

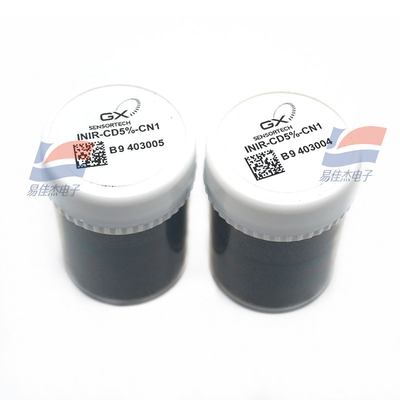

INIR-CD5% CO2 Infrared Carbon Dioxide Probe Low Power Consumption
Ir-cd5 %-CN Infrared Carbon Dioxide Probe
Features:
Designed for harsh operating environments, INIR digital infrared sensors provide accurate, fast readings while having a minimal circuit design. The new INIR digital infrared sensor uses a high-performance optical resonator, integrated drive circuit and software to output accurate gas concentration values.
Key functional features of these sensors include:
• Low power consumption
• Series 4 package, compatible with catalytic and electrochemical gas sensor packages
• Have reference channels that can be used for self-compensation
• Can be operated under various ambient temperature, pressure and humidity conditions
• Fast response
• Durable stainless steel construction
• Corrosion resistance
• Immune to "poisoning"
• Able to perform reliable fail-safe operations
• Less maintenance work
• Suitable for stationary or portable instruments
• A range of products that can be extended to other gases or vapors
Specifications:
Lighting technology | Black body |
spectrum | infrared |
Other characteristics | Compact with reflector |
Output power | 0.45W (0.00061hp) |
wavelength | Minimum: 2 µm |
