3EF Gas Carbon Monoxide Sensor Electrochemical Available With Side Tags 3 Electrode Electrochemical

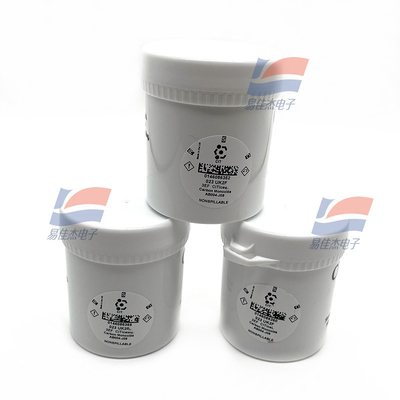

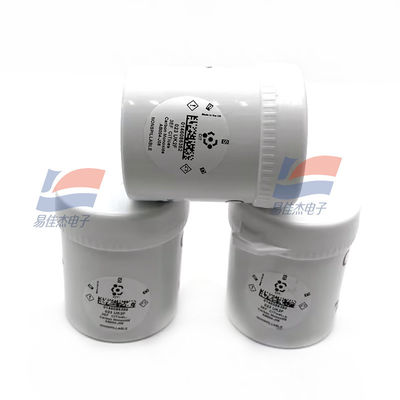

Large Image : 3EF Gas Carbon Monoxide Sensor Electrochemical Available With Side Tags 3 Electrode Electrochemical

Product Details:

Place of Origin:	UK
Brand Name:	CITY
Model Number:	3EF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

3EF Gas Carbon Monoxide Sensor Electrochemical Available With Side Tags 3 Electrode Electrochemical

Description

Nominal Range:

0-1000ppm

Maximum Overload:

2000ppm

Expected Operating Life:

Three Years In Air

Output Signal:

0.10 ± 0.02 µA/ppm

Highlight:

3EF Gas Sensor

2000ppm Carbon Monoxide Sensor

Gas Carbon Monoxide Sensor

3EF Gas Carbon Monoxide Sensor Electrochemical Available With Side Tags 3 Electrode Electrochemical

The 3E and 3E/F Carbon Monoxide CiTiceLs are available with side tags, gold-plated PCB pins, or both PCB pins and side tags.
To ensure the appropriate option is supplied care must be taken to provide the correct code when ordering.

Datasheet:

Inboard Filter (3E/F only)	To remove SOx/NOx & H2S
Resolution	0.5 ppm
Temperature Range	-20°C to +50°C
Pressure range	Atmospheric ±10%
Pressure coefficient	0.020 ± 0.008%signal/mBar
T90 Response Time	3E: £25 seconds 3E/F: £30 seconds

3EF Gas Carbon Monoxide Sensor Electrochemical Available With Side Tags 3 Electrode Electrochemical 0
