CSNS300M-500 Current Sensor Closed Loop Industrial 300A

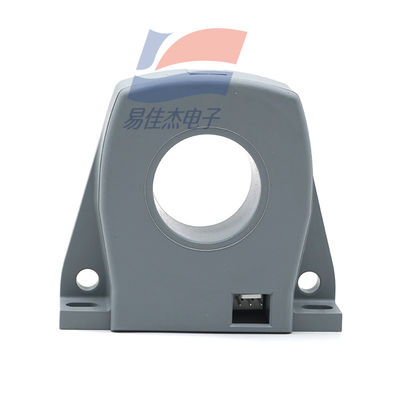

Large Image : CSNS300M-500 Current Sensor Closed Loop Industrial 300A

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	CSNS300M-500

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

CSNS300M-500 Current Sensor Closed Loop Industrial 300A

Description

Sensed Current Type:	Ac, Dc	Pinout Style:	25 °Cto 85 °C[-13 Fto 185°F]
Dperate Current:	0.5 At. Nom, 3.5 At.nom.	Output:	Voltage
Supply Voltage:	6 Vdc To 16 Vdc	Response Time:	100 μs
Mounting Pcb Mounting:	Pins Or Screw Mount	Accuracy Better Than:	0.5 %
Highlight:	CSNS300M-500 , CSNS300M-500 Board Mount Current Sensors , High Accuracy Board Mount Current Sensors

CSNS300M-500 Current Sensor Closed Loop Industrial 300A

The core model of the CSN series closed-loop current sensor is based on the Hall effect or magnetoresistive effect and uses closed-loop zero flux technology. It can accurately detect DC, AC and pulse currents and is suitable for industrial automation, power electronics and new energy fields.

Specification:

Rated Current	300A (rms)
Measuring Range	±600A (peak)
Bandwidth	DC to 150kHz
Accuracy	0.5% (at 25℃)
Zero-Bias Current	<±0.2mA
Temperature Drift	<±0.4mA (0℃ to 70℃)
Output Characteristics	150mA analog current output (at 300A), coil turns ratio 1/2000
Measured Resistance Range	5-95Ω (at 200A)
Power Supply Requirements	±15VDC (±5%), also supports ±12V DC to ±18V DC
Current Consumption	10mA + output current
Insulation Performance	6kVrms/50Hz/1 minute

CSNS300M-500 Current Sensor Closed Loop Industrial 300A 0
