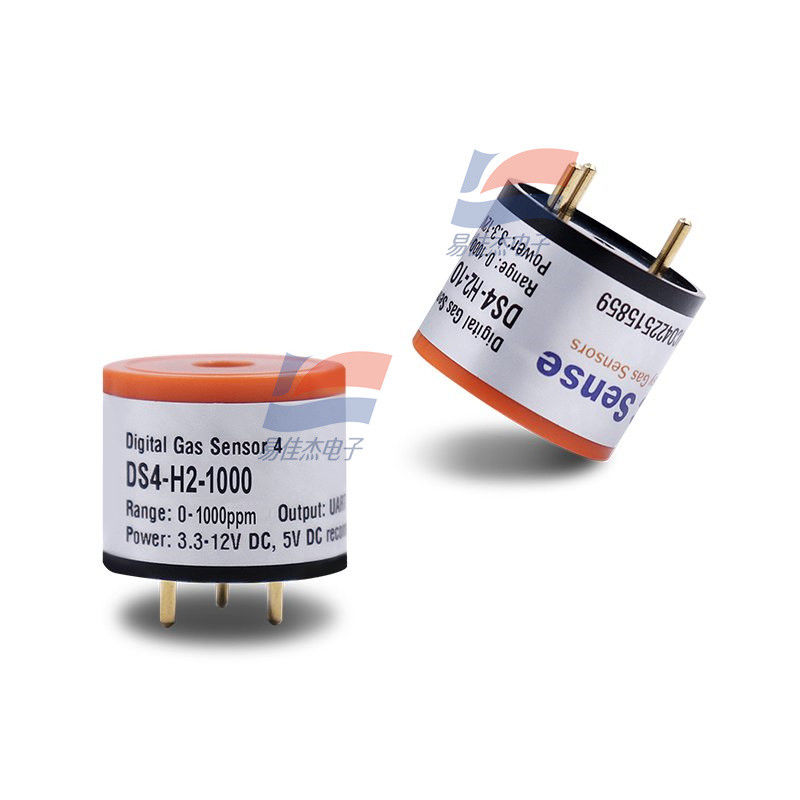

DS4-H2 Hydrogen Smart Digital Gas Sensor Soild Polymer Electrochenical Sensing

Large Image : DS4-H2 Hydrogen Smart Digital Gas Sensor Soild Polymer Electrochenical Sensing

Product Details:

Place of Origin:	Germany
Brand Name:	EC Sensor
Model Number:	DS4-H2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

DS4-H2 Hydrogen Smart Digital Gas Sensor Soild Polymer Electrochenical Sensing

Description

Operating Pressure Range Atmospheric Pressure:	±10%	Operating Temperature Range:	-40 To +55℃
Perating Humidity Range:	15-95%RH. Non-condensing	Error Range:	± 5% F.S
Power-on Stabilization Time:	< 2min (no Need To Warm Up The Machine, Just Power On And Test)	Storage Temperature Range:	0 To 20℃
Operating Current:	0.65mA @ 5V DC	Power Consumption:	1mA @ 5V DC
Highlight:	DS4-H2 Gas Detector Device , Accurate Gas Detector Device , DS4-H2

DS4-H2 Hydrogen Smart Digital Gas Sensor Soild Polymer Electrochenical Sensing

Features
*Low power consumption, wide range power supply from 3.3 to12V DC (5V recommended).
*Wide operating temperature range from -40 ℃ to +55 ℃, without temperature compensation.
*Long-term zero point stability.
Fast response time and timely detection of gas concentration changes.
*Excellent linearity.
*Anti-poisoning and long lifetime.
*Solidification design of the electrolyte, avoiding the risk of liquid leakage caused by high humidity environments or material aging.

Datasheet:

Principle	Solid Polymer Electrochemical Sensing Technology
Accuracy	± 5% F.S
Repeatability	< 2%
Warm-Up Time	< 60 s

Lifetime

Long-Term Drift	< 1 %/month
Expected Lifetime	> 3 years
Warranty	12 months from the date of shipment

DS4-H2 Hydrogen Smart Digital Gas Sensor Soild Polymer Electrochenical Sensing 0
