GM4010-O2 Oxygen Gas SensorElectrochemical High Sensitivity

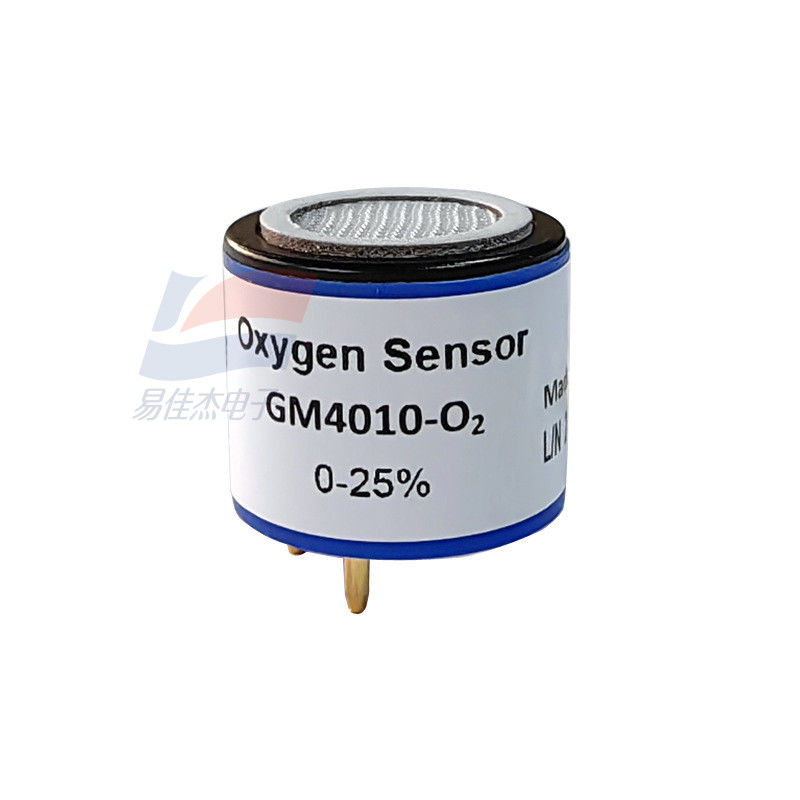

Large Image : GM4010-O2 Oxygen Gas SensorElectrochemical High Sensitivity

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	GM4010-O2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

GM4010-O2 Oxygen Gas SensorElectrochemical High Sensitivity

Description

Detection Gas:	Oxygen O2	Maximum Load Concentration:	30vol%
Detection Range:	0-25%vol	Product Type:	Electrochemical Gas Sensor
Product Model:	GM4010-O2	Operating Temperature Range:	-20 To 70℃
Response Time T90S:	＜15S	Operating Humidity Range:	5-90%RH
Highlight:	Industrial Environments Gas Sensor , GM4010-O2 Gas Sensor , 30vol% Maximum Load Concentration Gas Sensor

GM4010-O2 Oxygen Gas SensorElectrochemical High Sensitivity

Specification:

Detection Principle	Electrochemical two-electrode
Detected Gas	Oxygen (O₂)
Detection Range	0-25%VOL
Maximum Load Concentration	30%VOL
Output Signal	0.10 ± 0.02 mA in Air
Zero Drift	0.6%VOL
Resolution	0.1%VOL
Response Time (T90)	<15S
Bias Voltage	0
Load Resistance	100Ω
Housing Material	ABS
Weight	16g
Orientation Sensitivity	<0.2% vol. O₂ equivalent
Recommended Storage Temperature	0°C to 20°C
Thermal Transient (Sudden Drop from +22°C to -20°C)	<23.5% vol.
Temperature Range	-30°C to 50°C
Humidity Range	15%RH to 90%RH (non-condensing)
Repeatability	<±2% of output signal
Long-Term Stability	<5% signal/year
Linearity	Linearity, regression coefficient R²=0.999

GM4010-O2 Oxygen Gas SensorElectrochemical High Sensitivity 0
