3EF 3E/F Electrochemical Gas Sensor for Fixed Life Safety Systems Industrial Hygiene & Safety Monitoring

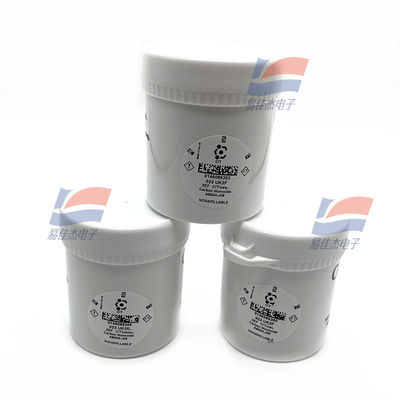

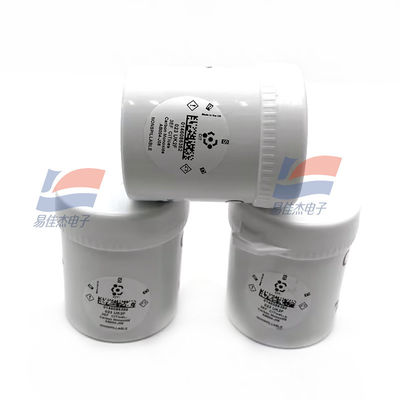

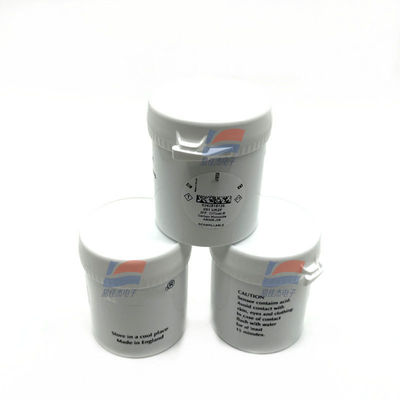

Large Image : 3EF 3E/F Electrochemical Gas Sensor for Fixed Life Safety Systems Industrial Hygiene & Safety Monitoring

Product Details:

Place of Origin:	UK
Model Number:	3EF 3E/F

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

3EF 3E/F Electrochemical Gas Sensor for Fixed Life Safety Systems Industrial Hygiene & Safety Monitoring

Description

Nominal Range:	0-1000ppm	Maximum Overload:	2000ppm
Expected Operating Life:	Three Years In Air	Output Signal:	0.10 ± 0.02 µA/ppm
Inboard Filter (3E/F Only):	To Remove SOx/NOx & H2S	Resolution:	0.5ppm
Highlight:	3EF 3E/F Electrochemical Gas Sensor , 2000ppm Electrochemical Gas Sensor , 0.5ppm Electrochemical Gas Sensor

3EF 3E/F Electrochemical Gas Sensor for Fixed Life Safety Systems Industrial Hygiene & Safety Monitoring

Features:

Built-in filter: Removes SOₓ, NOₓ, H₂S interference.
3-electrode design: High stability, low drift.
Fast response: T90 <30 s, quick recovery.
Robust: Wide temp/humidity/pressure tolerance.
Compact 3-series: Side tags / gold-plated PCB pins options.

Applications:

Fixed life safety systems
Industrial hygiene & safety monitoring
Building automation & HVAC
Combustion appliance safety (boilers, heaters)

Temperature Range	-20°C to +50°C
Pressure Range	Atmospheric ± 10%
Pressure Coefficient	0.020 ± 0.008 %signal/mBar
Relative Humidity Range	Relative Humidity Range
Typical Baseline Range	-1 to +3ppm equivalent

3EF 3E/F Electrochemical Gas Sensor for Fixed Life Safety Systems Industrial Hygiene & Safety Monitoring 0
