Product Details:
|
| Product Model: | CLE-099-400 | Measuring Range: | 0-10 Ppm |
|---|---|---|---|
| Maximum Load: | 50 Ppm | Resolution: | 0.1ppm |
| Operating Temperature: | -20℃to 50℃ | Working Humidity: | 15 ~ 90%RH (non-condensing) |
| Highlight: | Classic Line Chlorine sensor,0-10 ppm Chlorine sensor,4CL2-10 Chlorine sensor |
||

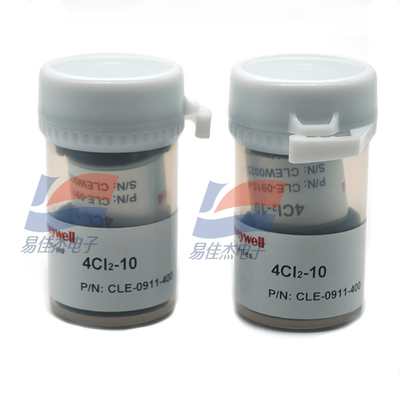

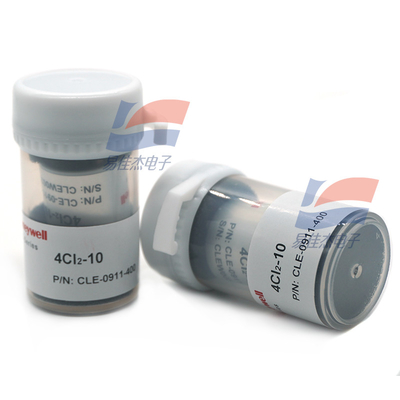

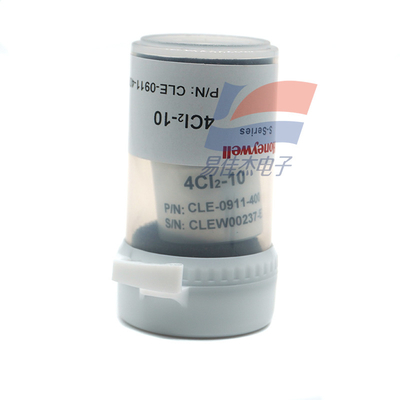

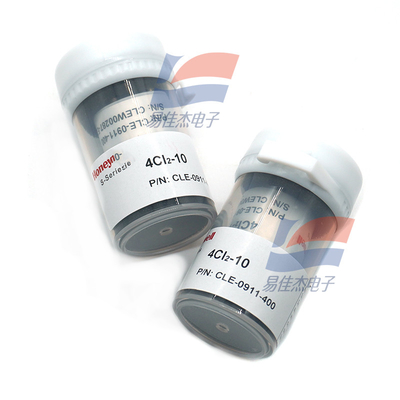

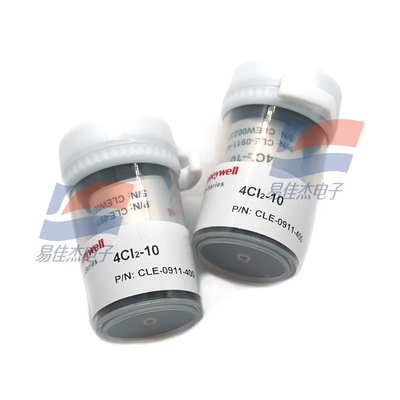

4CL2-10 4-CL2-10 Chlorine sensor 0-10 ppm Classic Line Sensor CLE-0911-400
Performance characterization:
Product model CLE-099-400
Measuring range 0-10 ppm
Maximum load 50 ppm
Sensitivity 0.75± 0.15 mA/ppm
Baseline (20 ℃) <±0.1 mA
Baseline drift is equivalent to 0 to -0.3 ppm
(-20 ~ 40 ℃) :
Resolution: 0.1ppm
Response time (T90) £30 seconds
linearity
Long-term stability <2% signal value/month
| Warranty period | 12 months after delivery |
| Service life | 2 years in the air |
| Storage temperature | 0℃ to 20℃ |
| Storage time | 6 months (in special box) |
| Bias voltage | 0 mV |
