Product Details:
|
| Operating Principle: | 3-electrode Electrochemical | Linearity: | Linear |
|---|---|---|---|
| Recommended Load Resistor: | 10 Ω | Bias Voltage: | Not Required |
| Weight: | 5 G Approx | Housing Material: | ABS |
| Operating Temperature Range: | -20°C To +50°C | Recommended Storage Temp: | 0°C To 20°C |
| Highlight: | 4COSH CO H2S Dual Gas Sensor,ABC05-800 Dual Gas Sensor |
||

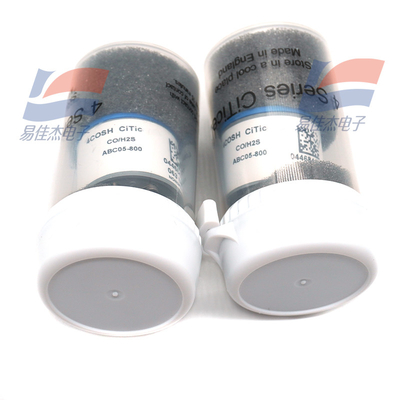

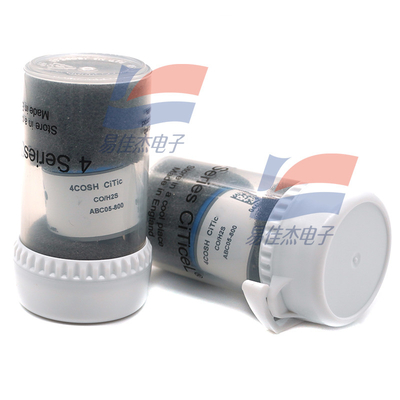

4COSH Carbon Monoxide / Hydrogen Sulfide (CO / H2S) Dual Gas Sensor Part Number: ABC05-800
IMPORTANT NOTE: Connection should be made via
PCB sockets only. Soldering to the pins will seriously
damage your sensor and invalidate the warranty.
* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology
recommended circuitry. Performance characteristics outline the performance of sensors
supplied within the first 3 months. Output signal can drift below the lower limit over time.
| Storage Life | 6 months in CTL container |
| Expected Operating Life | 3 years in air |
| Long Term Sensitivity Drift | <30% signal loss/operating life |
| Operating Humidity Range | 15 - 90% RH non-condensing |
| Operating Pressure Range | Atmospheric ± 10% |
