Product Details:
|
| Product Model: | CLE-0613-400 | Range: | 0 To 1000 Ppm |
|---|---|---|---|
| Maximum Load: | 2000 Ppm | Resolution: | 10 Ppm |
| Long-term Stability: | < 2% Signal Value/month | ||
| Highlight: | 10 ppm Resolution Hydrogen Sensor,Long-Term Stability Hydrogen Sensor,2% Signal Value/Month Hydrogen Sensor |
||

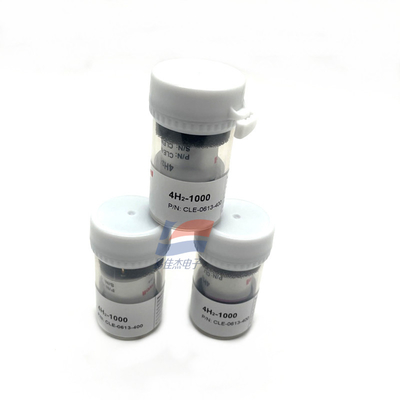

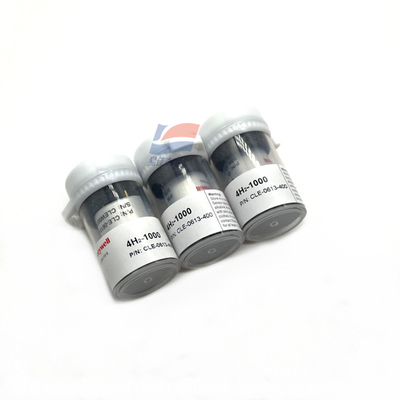

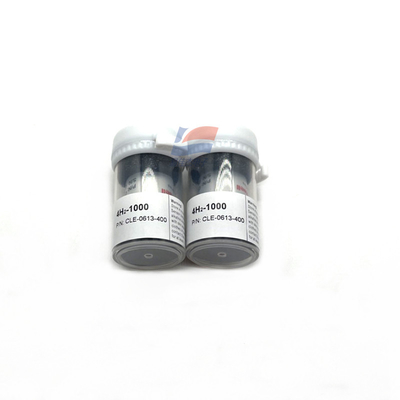

4H2-1000 Classic Line Hydrogen sensor 0-1000 ppm
Instructions for use:
1. All the above performance specifications are measured at ambient conditions: temperature 20 ℃, relative humidity 50%RH, one atmospheric pressure (100 kPa or ambient pressure).
2. Target gas is recommended for calibration. In the case of calibration with cross-sensitive gases, we do not guarantee the accuracy of calibration and measurement.
3. The cross sensitivity will fluctuate by +/ -30% and may vary with the production batch of the sensor and the life of the sensor.
4. The cross-sensitivity includes but is not limited to the above gases, and the sensor may respond to other gases.
| Warranty period | 12 months after delivery |
| Service life | 2 years in the air |
| Storage temperature | 0 ℃ to 20 ℃ |
| Storage time | 6 months (in special box) |
| Bias voltage | 0 mV |
