Product Details:
|
| Operating Principle: | 3-electrode Electrochemical | Measurement Range: | 0-100 Ppm H2S |
|---|---|---|---|
| Maximum Overload: | 500 Ppm H2S | Sensitivity*: | 0.7 ± 0.15 μA/ppm |
| Response Time (T90)*: | 20 Seconds | Baseline Offset (clean Air)*: | < ±0.5 Ppm Equivalent |
| Highlight: | Industry Leading Reliability H2S Gas Sensor,2112B2025 H2S Gas Sensor,4HS+ H2S Gas Sensor |
||

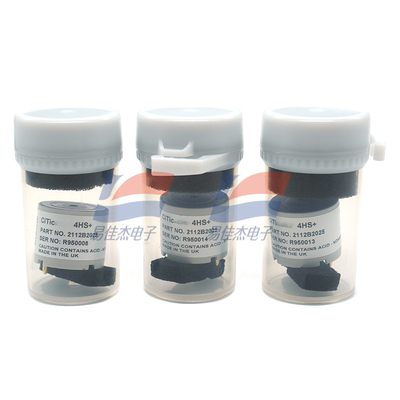

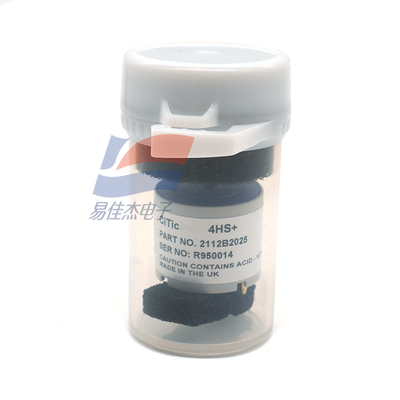

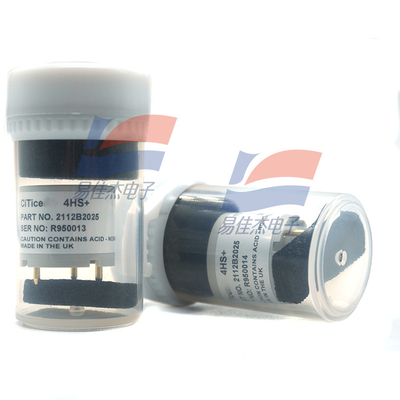

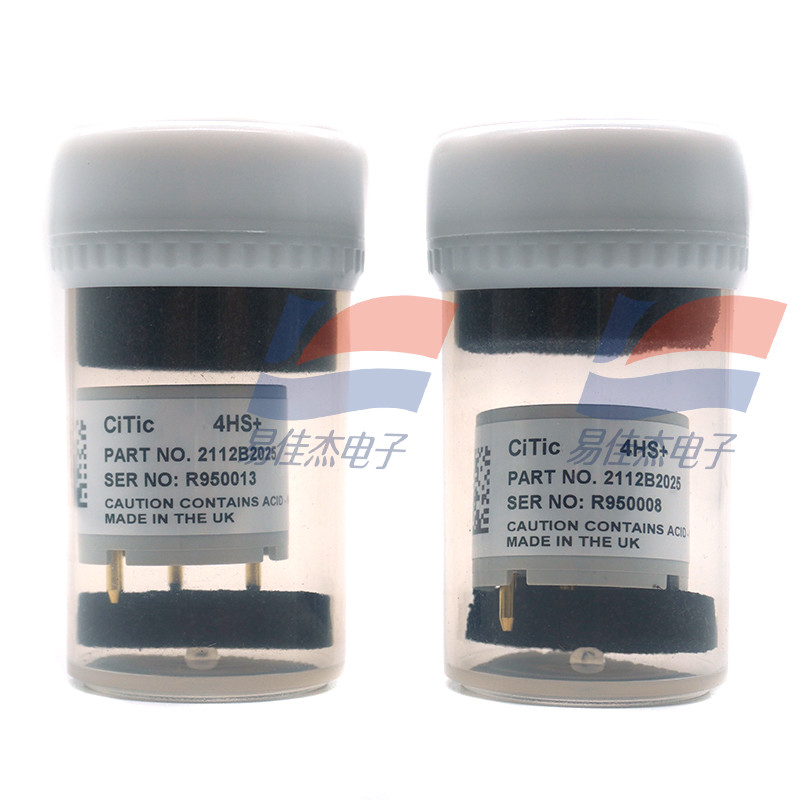

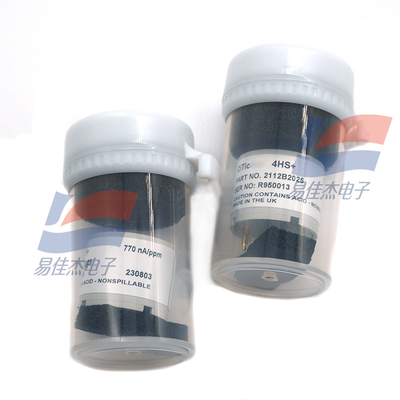

4HS+ Hydrogen Sulfide (H2S) Gas Sensor Part Number: 2112B2025 Industry leading reliability
IMPORTANT NOTE:
Connection should be made via PCB sockets only.
Soldering to the pins will seriously damage your
sensor and invalidate the warranty.
All performance data is based on conditions at
20°C, 50%RH and 1013mBar, using City Technology
recommended circuitry. For sensor performance data
under other conditions, please contact City Technology.
| Storage Life | 6 months in sealed container |
| Expected Operating Life | 2 years in air |
| Recommended Storage Temp | +10°C to +30°C |
| Long Term Output Drift | < 20% per annum |
| Maximum s/c Current | <1.0 A |
