Product Details:
|
| Measuring Range: | 0 To 30% O2 | Maximum Load: | 90% O2 |
|---|---|---|---|
| Output Signal: | -350 ± 50 μA In Air | Baseline: | -40 ~ 10 μA (Nitrogen) |
| Resolution: | 0.1% O2 | Long-term Stability: | < 2% Signal Value /3 Months |
| Highlight: | 3 Months High Stability Oxygen Sensor,0-30% Oxygen Sensor,4OL Classic Line Oxygen Sensor |
||

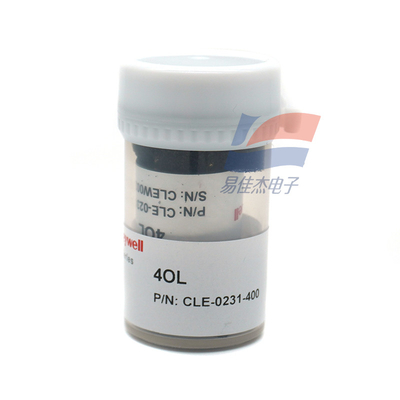

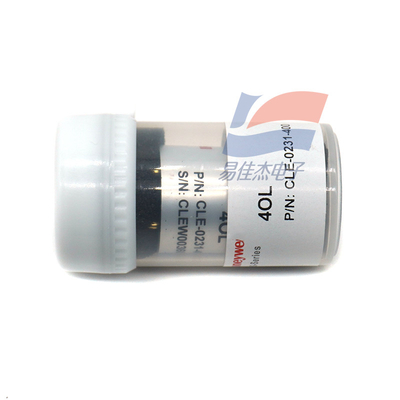

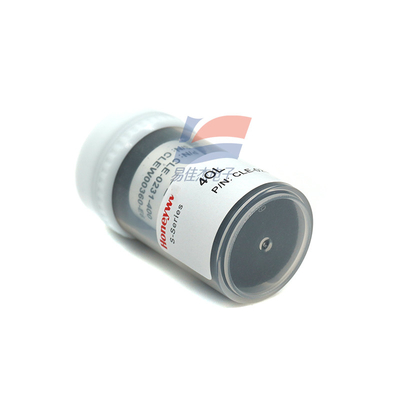

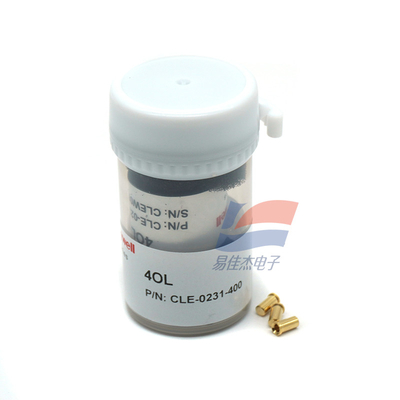

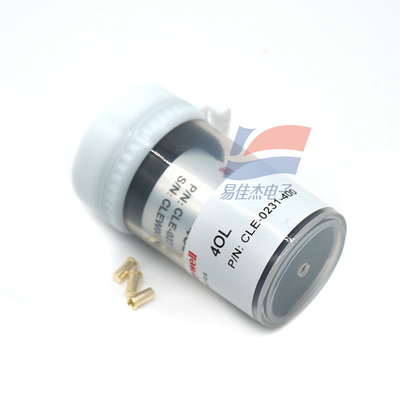

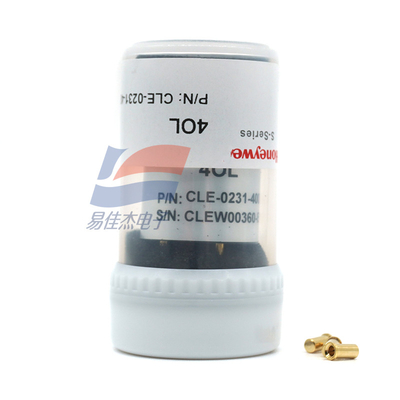

4OL Classic Line 4-O2 (Lq) Sensor Oxygen sensor 0-30% CLE-0231-400
Instructions for use:
1. All the above performance specifications are measured at ambient conditions: temperature 20 ℃, relative humidity 50%RH, one atmospheric pressure (100 kPa or ambient pressure)
Agreed.
2. A sudden change in pressure will cause a high or low response from the oxygen sensor, which generally takes a few minutes to stabilize.
| Operating temperature | -20 ℃ to 50 ℃ |
| Operating Humidity | 5 to 90%RH(non-condensing) |
| Working pressure | 80 to 120 kPa |
| Bias voltage | -600 mV |
| Storage time | 6 months (in special box) |
