Product Details:
|
| Range: | 0 - 1000 Ppm | Sensitivity: | 50 - 130 NA/ppm H2S |
|---|---|---|---|
| Zero In Air At 20 °C: | <±8 Ppm H2S | Resolution: | 1 Ppm H2S |
| Expected Lifetime: | 2 Years | Response Time, T90: | <45 S |
| Highlight: | Hydrogen Sulfide Electrochemical Sensor,EC4-1000-H2S Air Quality Sensors,Hydrogen Sulfide Air Quality Sensors |
||

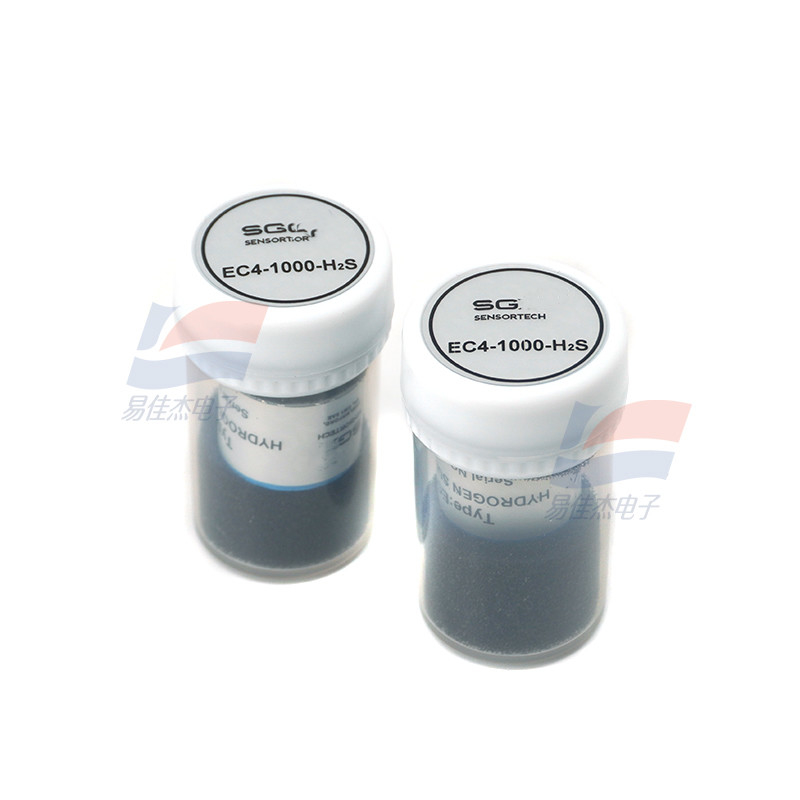

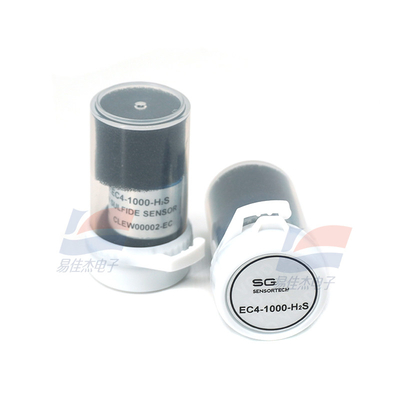

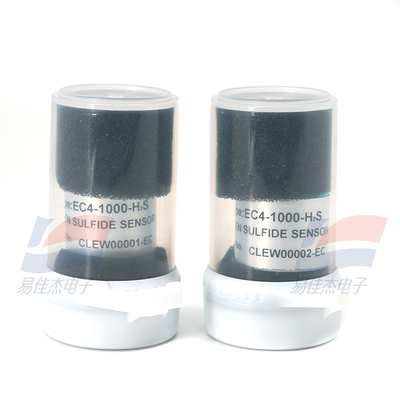

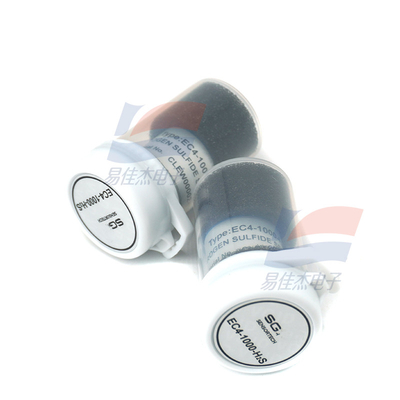

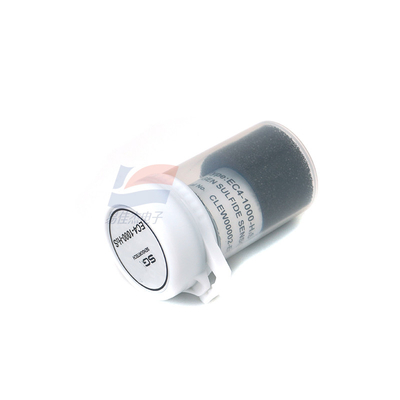

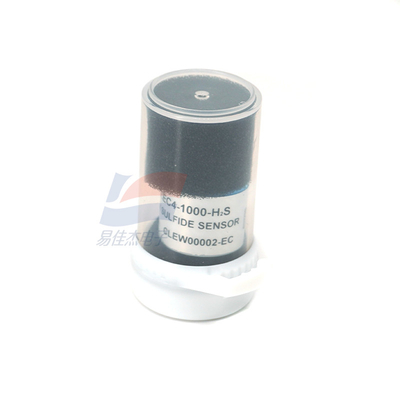

EC4-1000-H2S Air Quality Sensors Hydrogen Sulfide Electrochemical Sensor
Amphenol SGX Sensortech EC4 electrochemical gas sensors are available in 20mm and 20.2mm package sizes as drop-in replacements for existing sensors of the same size. The EC4 series offers a variety of sensing types to detect toxic gases: sulfur dioxide (SO 2 ), carbon monoxide (CO), hydrogen (H 2 ), chlorine (Cl 2 ), hydrogen sulfide (H 2 S), chlorine dioxide (ClO 2 ), nitric oxide (NO), nitrogen dioxide (NO 2 ), ethylene oxide (C 2 H 4 O), and phosphine (PH 3 ). Amphenol SGX Sensortech EC4 electrochemical gas sensors have low power consumption and respond well to a wide range of gas concentrations under a wide range of environmental conditions.
| Product Category | Air Quality Sensor |
| Sensor Type | Hydrogen Sulfide (H2S) |
| Maximum Operating Temperature | +50 degrees Celsius |
| Minimum Operating Temperature | -20 degrees Celsius |
| Mounting Method | Through Hole |
