Product Details:
|
| Technology: | Electrochemical | Measurement Range: | 1-25% Vol. O2 |
|---|---|---|---|
| Maximum Overload: | 30% Vol. O2 | Output Signal: | 0.10 ± 0.02 MA In Air |
| Response Time (T90): | <15 Seconds | Zero Current (Offset): | <0.6% Vol. O2 |
| Highlight: | 4OX-V Oxygen Gas Sensor,False Alarm Immunity Oxygen Gas Sensor,Electrochemical Technology Oxygen Gas Sensor |
||

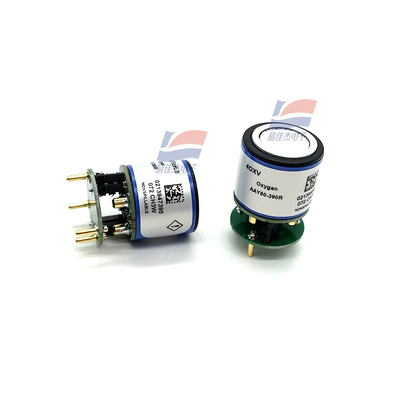

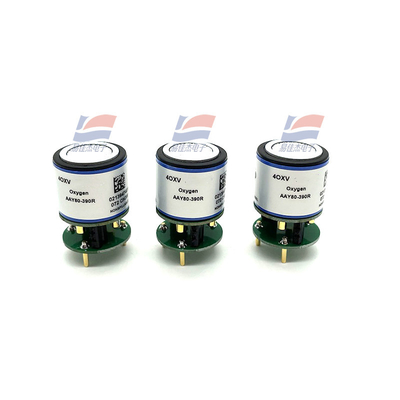

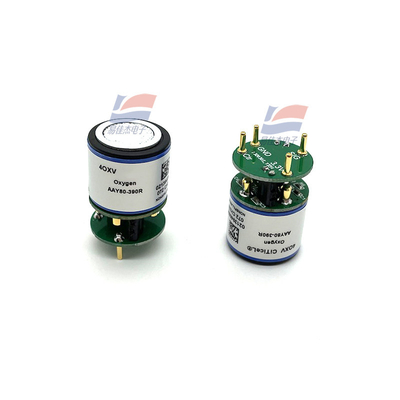

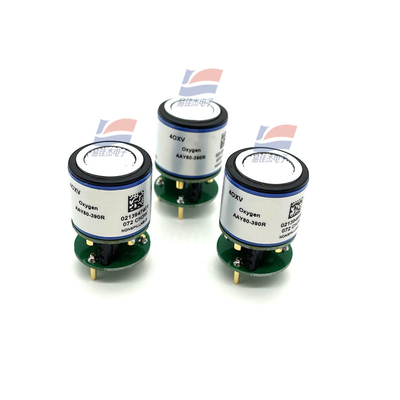

4OX-V module Oxygen (O2) Gas Sensor module Part Number: AAY80-390 False alarm immunity
Key Features and Benefits:
• False alarm immunity
• Reliably meets stated life
• Superior environmental performance
• Enhanced response time in extreme applications
| Casing Material | ABS |
| Weight | 16g |
| Orientation Sensitivity | <0.2%vol. O2 equivalent |
| Operating Pressure Range | Atmospheric ± 20% |
| Pressure Coefficient | <0.02% signal/mbar |
| Continuous | 5 to 95%RH non-condensing |
| Short Term | 0 to 99%RH non-condensing |
| Storage Life | 6 months in original packaging |
