Product Details:
|
| Nominal Range: | 0-4000ppm | Maximum Overload: | 20 000ppm |
|---|---|---|---|
| Replaceable Filter Unit: | To Remove Acid Gases | Expected Operating Life: | Three Years In Air |
| Output Signal: | 0.030 ± 0.006 μA/ppm | ||
| Highlight: | 5F Carbon Monoxide gas sensor |
||

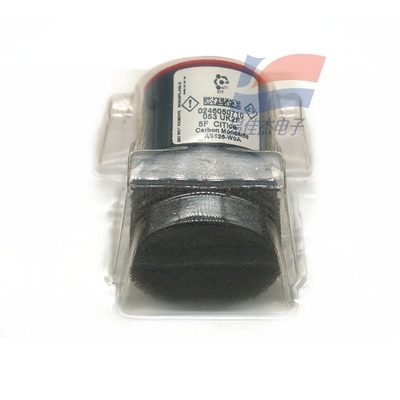

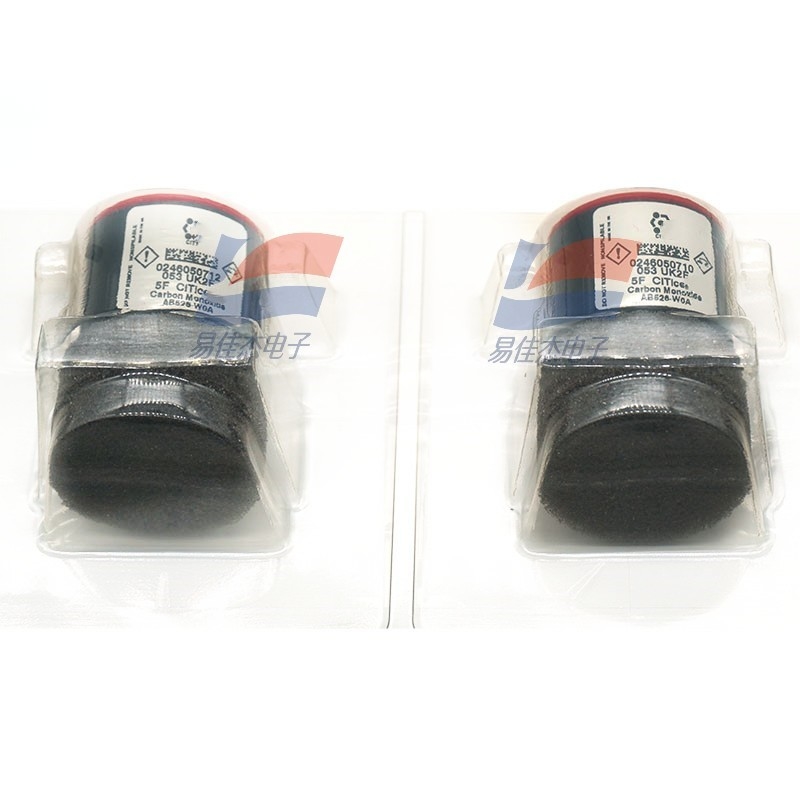

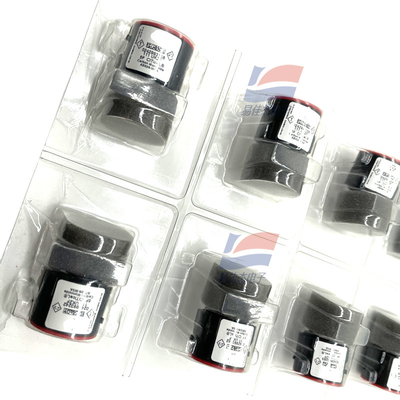

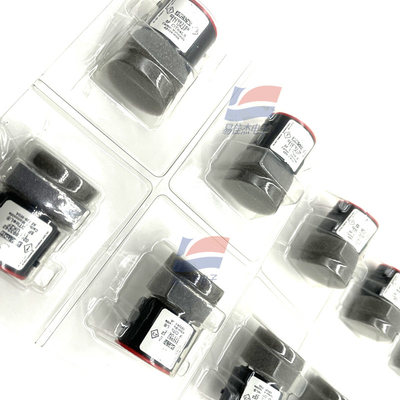

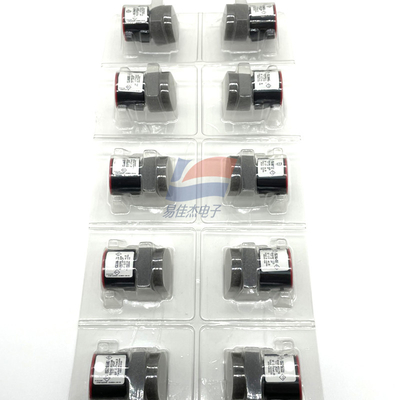

5F Carbon Monoxide gas sensor For gas analyzers
Cross-sensitivity Data
CiTiceLs may exhibit a response to certain gases in a sample other than the target gas. The table below shows the
typical response of 5F sensors to a number of common cross-interfering gases. The figures are expressed as a
percentage of the primary sensitivity (i.e. carbon monoxide = 100%).
| Bias Voltage | Not required |
| Repeatability | 1% of signal |
| Output Linearity | Linear |
| Weight | 12.5 g |
| Storage Life | Six months in CTL container |
| Recommended Storage Temperature | 0-20°C |
| Warranty Period | 12 months from date of despatch |
| Long Term Output Drift | <2% signal loss/month |
