Product Details:
|
| Nominal Range: | 0-200ppm | Maximum Overload: | 1000ppm |
|---|---|---|---|
| Expected Operating Life: | Two Years In Air | Output Signal: | 0.37 ± 0.07 μA/ppm |
| Resolution At 20°C: | 0.5ppm | ||
| Highlight: | 5ND Nitrogen Dioxide Sensor,5ND Nitrogen Dioxide gas sensor |
||

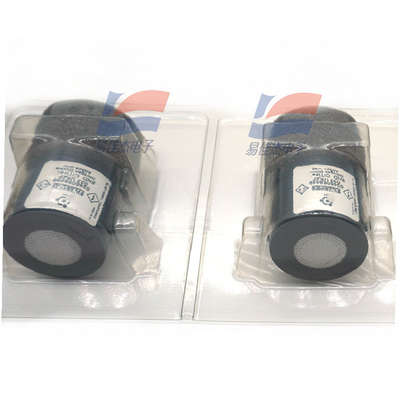

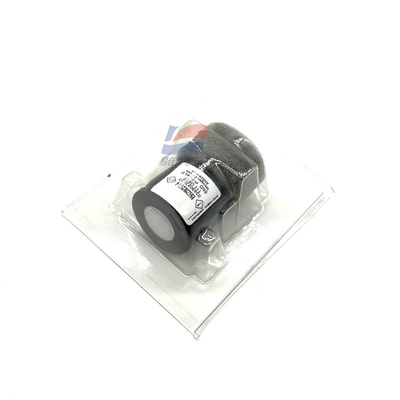

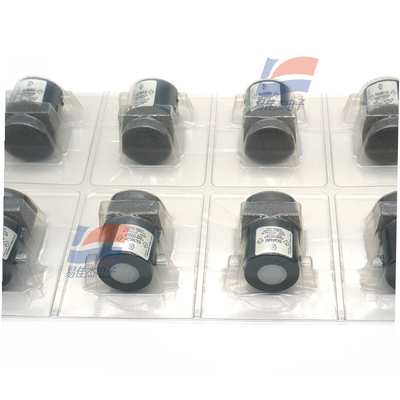

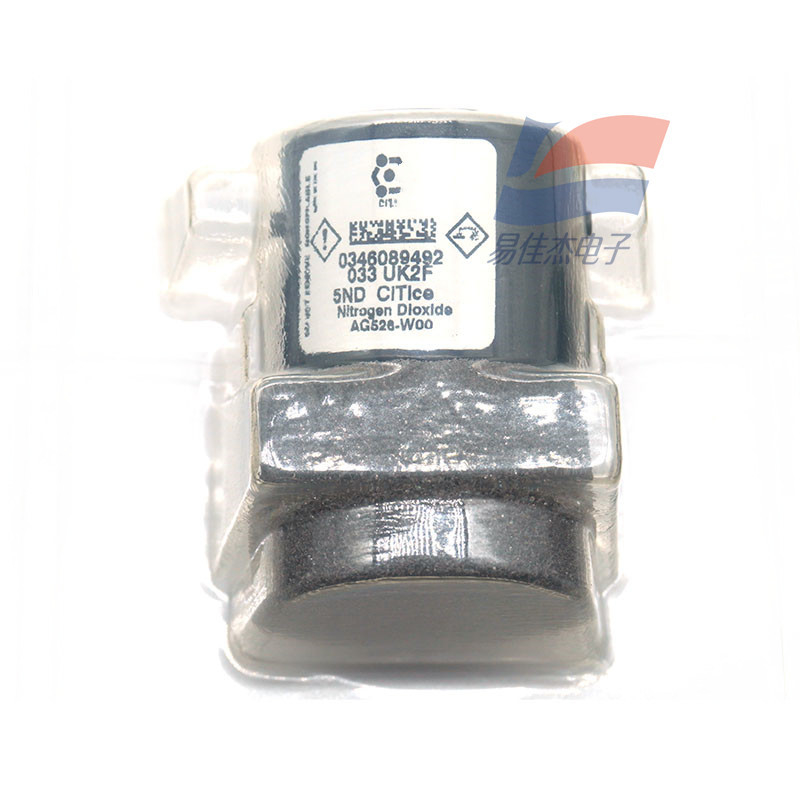

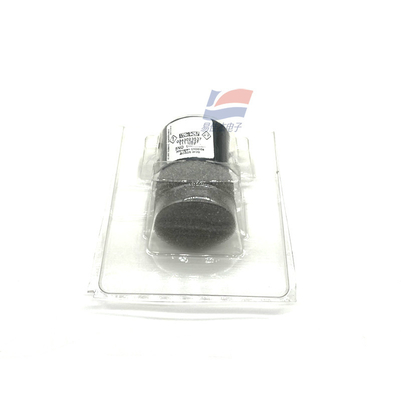

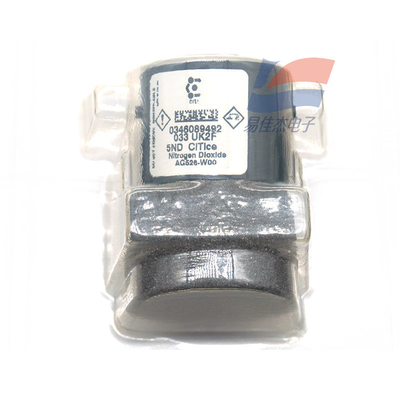

5ND Nitrogen Dioxide gas sensor
Cross-sensitivity Data:
CiTiceLs may exhibit a response to certain gases in a sample other than the target gas. The table below shows the
typical response of 5ND sensors to a number of common cross-interfering gases. The figures are expressed as a
percentage of the primary sensitivity (i.e. nitrogen dioxide = 100%).
| Temperature Range | -20°C to +50°C |
| Pressure Range | Atmospheric ± 10% |
| Pressure Coefficient | 0.037% signal/mBar |
| T90 Response Time | <60 seconds |
| Relative Humidity Range | 15 to 90% non-condensing |
| Typical Baseline Range(pure air) | Typical Baseline Range(pure air) |
| Maximum Zero Shift(+20°C to +40°C) | -1ppm equivalent |
| Long Term Output Drift | <2% signal loss/month |
