Product Details:
|
| Operating Principle: | Operating Principle | Measurement Range: | 0-1000 Ppm NO |
|---|---|---|---|
| Maximum Overload: | 5000 Ppm NO | Filter: | To Remove Effect Of SO2 |
| Response Time (T90)*: | < 30 Seconds | Baseline Offset (clean Air)*: | 0 To 12 Ppm Equivalent |
| Highlight: | 5NF Nitric Oxide Gas Sensor,PCB pins Gas Sensor,solder tags Gas Sensor |
||

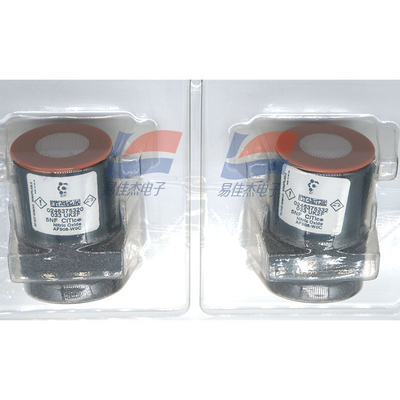

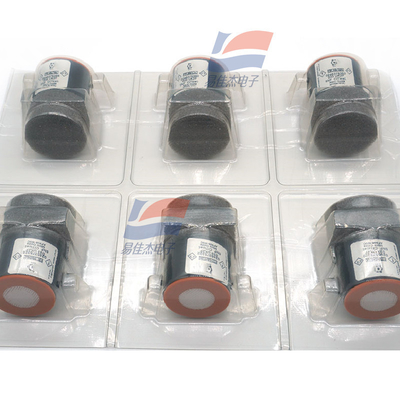

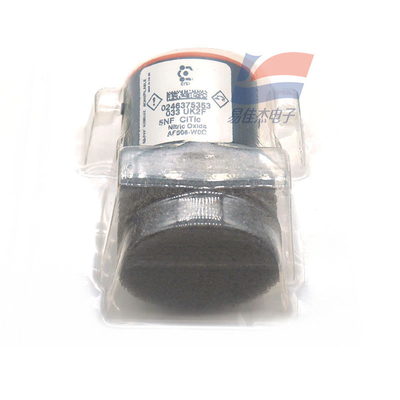

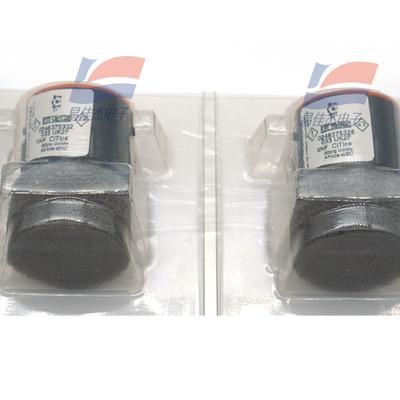

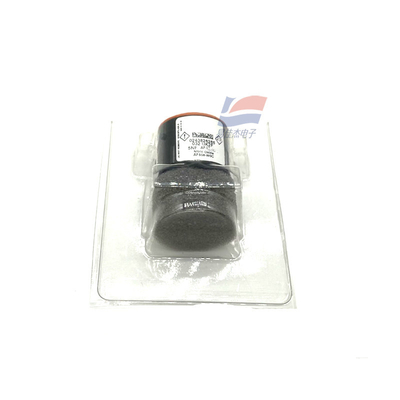

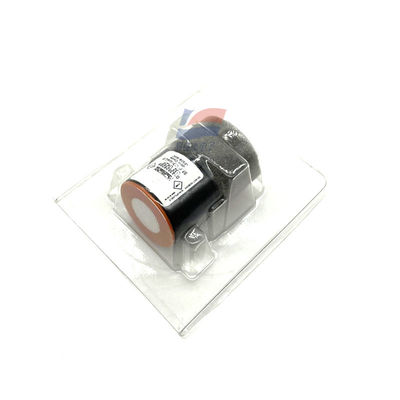

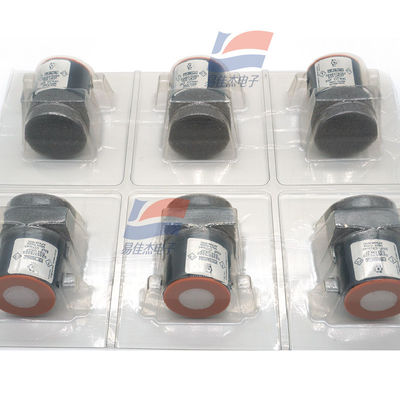

5NF Nitric Oxide (NO) Gas Sensor Electrical connection via PCB pins or solder tags
Key Features & Benefits:
• Incorporates scavenging electrode for removal of by-products
• Electrical connection via PCB pins or solder tags
| Repeatability | 2% of signal |
| Linearity | Linear |
| Recommended Load Resistor | 10 Ω |
| Bias Voltage | +300 mV |
| Weight | 13 g nominal |
| Operating Temperature Range | -20°C to +40°C See note 1 |
| Recommended Storage Temp | Recommended Storage Temp |
| Pressure Coefficient | 0.01% signal / mbar |
