Product Details:
|
| Range: | 40-4000ppm | Circuit Voltage: | 5.0±0.1V |
|---|---|---|---|
| Heating Voltage: | 4.25±0.05V | Heater Load Resistance: | 15Ω |
| Highlight: | YJJ Hydrogen H2 Sensor,Household Gas Alarms H2 Sensor |
||
Product Description:

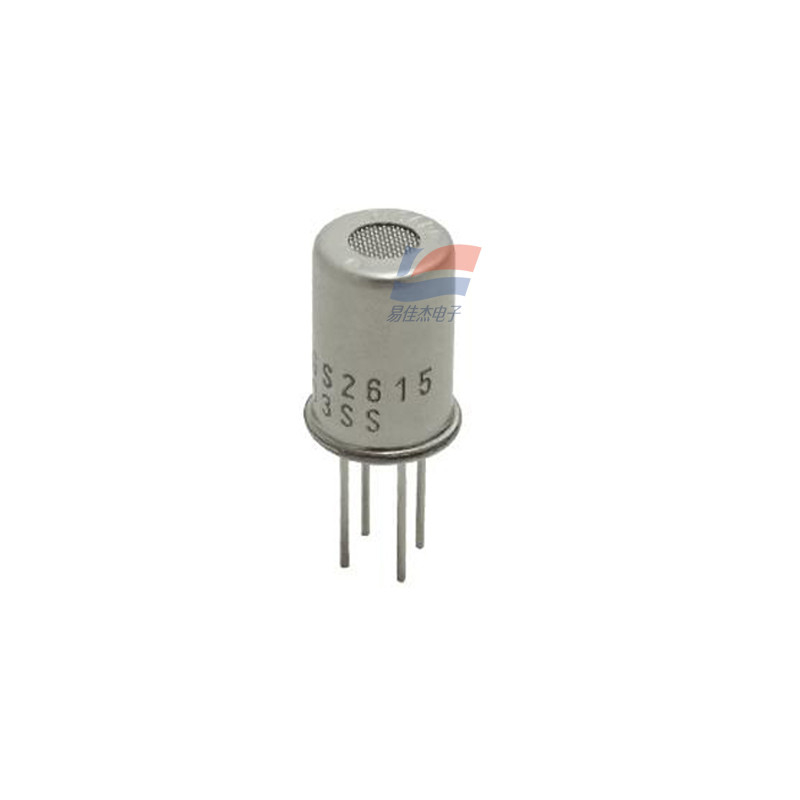

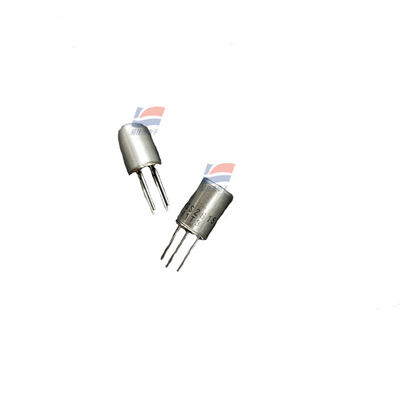

TGS2615-E00 Hydrogen H2 sensor for household gas alarms
Features:
TGS2615-E00: Metal oxide semiconductor principle, designed filter layer, can effectively eliminate alcohol and other volatile organic solvent interference, show
Excellent selectivity and sensitivity to hydrogen.
TGS2615-E00 Main parameters:
Range: 40-4000ppm
Circuit voltage: 5.0±0.1V
Heating voltage: 4.25±0.05V
Heater load resistance: 15Ω
Heater power consumption: 212±20mW
TGS2615-E00 Main features:
1. Filter layer with enhanced selectivity
2. Low power consumption
3. Long service life and low cost
4. Simple application circuit
TGS2615-E00 Typical application:
1. Household gas alarm
2. Portable gas leak detector
3. Hydrogen leak detection of fuel cell system
Specifications:
| Measurement range | 40-4000ppm |
| Sensitivity (resistance ratio) | 5.0±0.1V |
| Heater voltage | 4.25±0.05V |
| Circuit voltage | 5.0±0.1V |
