Product Details:
|
| Nominal Range:: | 0-10 000ppm | Maximum Overload: | 20 000ppm |
|---|---|---|---|
| Expected Operating Life: | Two Years In Air | Resolution: | 10ppm |
| Highlight: | Hydrogen Detector Gas Hydrogen H2 Sensor,Electrochemical Hydrogen H2 Sensor |
||
Product Description:

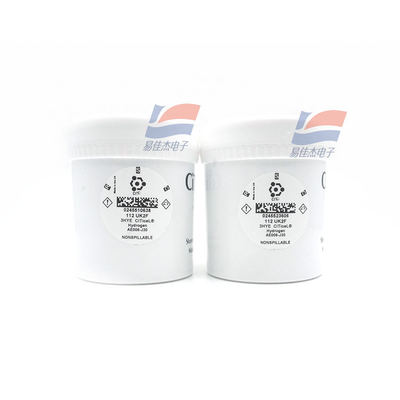

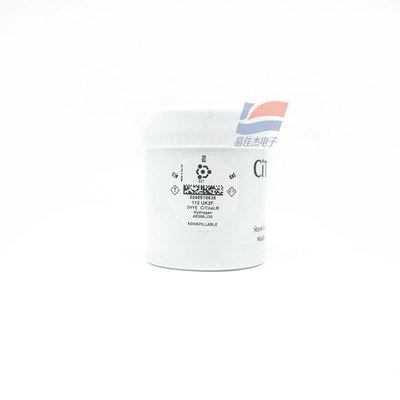

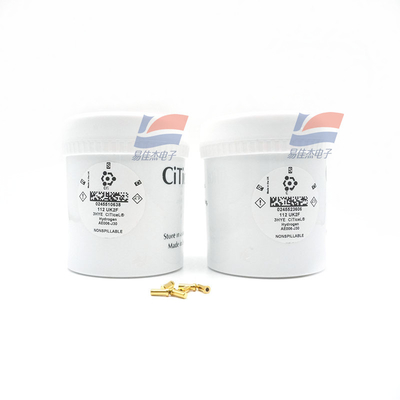

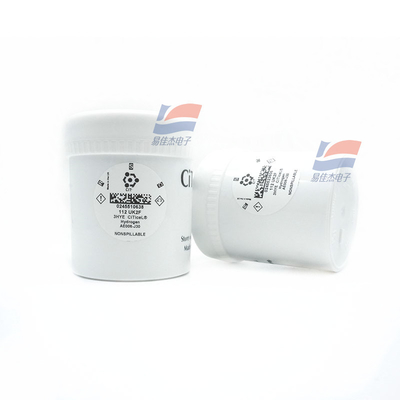

3HYE AE006-J30 3 Series Electrochemical Gas Hydrogen H2 Sensor For Hydrogen Detector H2 Concentration Tester
Features:
Nominal Range:0-10 000ppm
Maximum Overload:20 000ppm
Expected Operating Life:Two years in air
Output Signal:0.003 ± 0.001 µA/ppm
Resolution:10ppm
Temperature Range:-20°C to +50°C
Pressure Range:Atmospheric ± 10%
Pressure Coefficient:0.006 % signal/mBar
T90 Response Time:<70 seconds
Relative Humidity Range:15 to 90% non-condensing
Typical Baseline Range:+2 to -150ppm equivalent
(pure air)
Maximum Zero Shift:-150ppm equivalent
(+20°C to +40°C)
Long Term Output Drift:<2% signal loss/month
Recommended Load:10 W
Resistor
Bias Voltage:Not required
Repeatability:2% of signal
Output Linearity:Linear
Specifications:
| Measurement range | 0-10000 ppm |
| Maximum load | 2000 ppm |
| Baseline (20°C) | Not required |
| Output Linearity | Linear |
