Product Details:
|
| Maximum Overload: | 4000ppm | Output Signal: | 0.075±0.025μA/ppm |
|---|---|---|---|
| Typical Baseline Range (pure Air): | -2 To +17ppm Equivalent | Bias Voltage: | 20 Or +250mV |
| Recommended Gain: | 0.5 To 2.5 | Weight: | 26g |
| Highlight: | Electrochemistry Carbon Monoxide,2000ppm Carbon Monoxide |
||

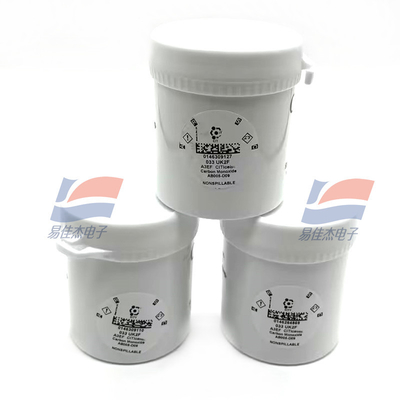

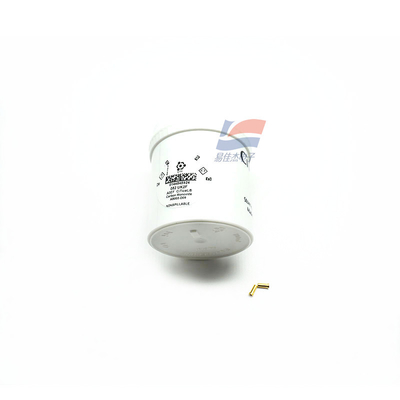

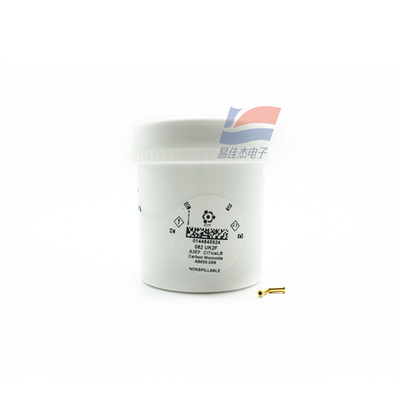

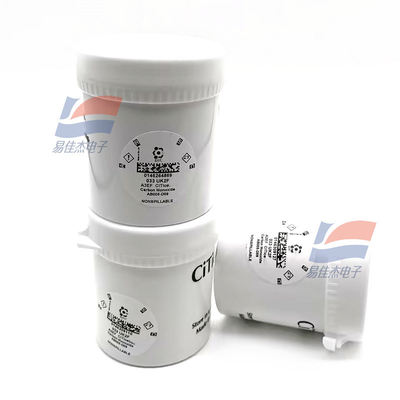

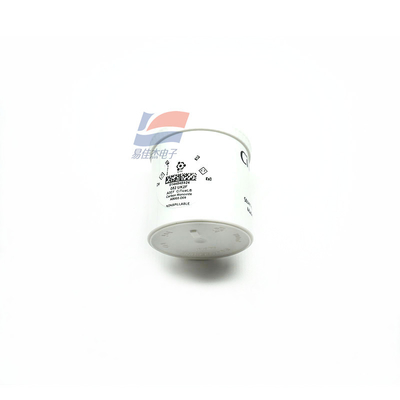

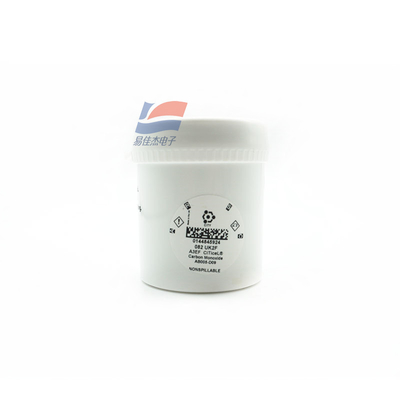

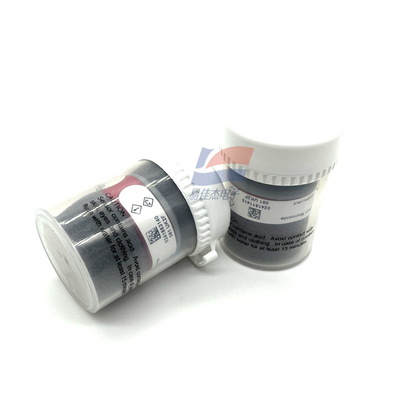

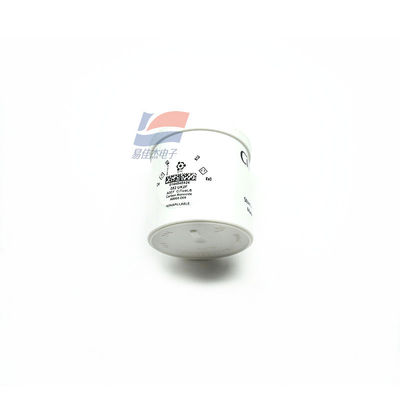

A3EF Electrochemistry Carbon Monxide 0-2000ppm For Gas Analyzers
Performance Characteristics
Inboard Filter:To remove acid gases/alcohol
Auxiliary Electrode:To compensate for H2 crossinterference
Expected Operating Life:3 years
Resolution:1ppm
Temperature Range:-20°C to +50 °C
Pressure Coefficient:0.02% signal/mBar
T90 Response Time:<40 seconds
Relative Humidity Range:15% to 90% non-condensing
Long Term Output Drift:<10% signal loss/year
| Repeatability | 2% of signal |
| Output Linearity | Linear |
| Storge Life | Six months in CTL container |
| Recommended Storage Temperature | 0-20°C |
| Warranty Period | 12 months from date of despatch |
