Product Details:
|
| Measurement Range: | 0-10 Ppm SO2 | Maximum Overload: | 100 Ppm |
|---|---|---|---|
| Filter: | To Remove H2S And HCl | Sensitivity*: | 0.60 ± 0.12 μA/ppm |
| Response Time (T90)*: | < 40 Seconds | Baseline Offset (clean Air)*: | 0 To 0.1 Ppm Equivalent |
| Highlight: | 4-Electrode Electrochemical SO2 Gas Sensor,AD045-H04 SO2 Gas Sensor |
||

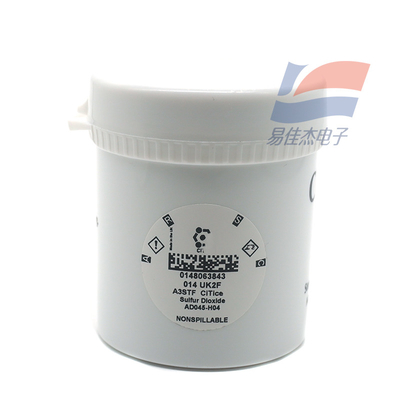

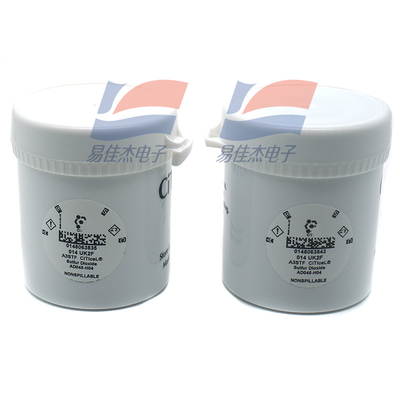

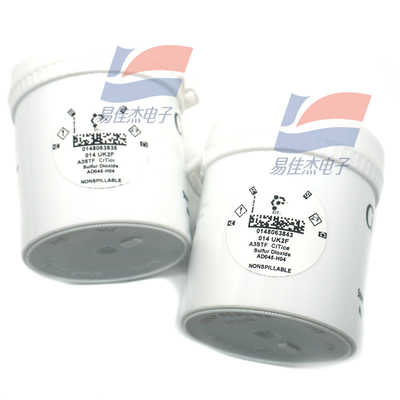

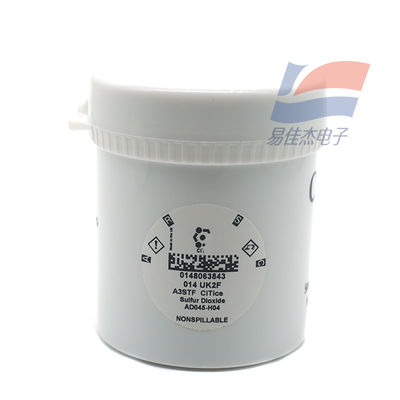

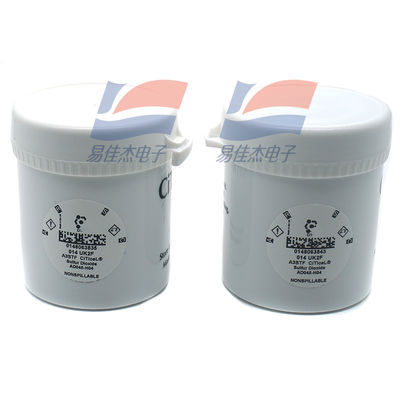

A3STF 4-Electrode Electrochemical Sulfur Dioxide (SO2) Gas Sensor Part Number: AD045-H04 Electrical Connection Via PCB Pins Or Solder Tags
Key Features & Benefits:
• 4th electrode for compensation of environmental changes
• Electrical connection via PCB pins or solder tags
IMPORTANT NOTE:
Connection should be made
via PCB sockets only. Soldering to the pins will
seriously damage your sensor.
| Recommended Load Resistor | 10 Ω |
| Weight | 22 g nominal |
| Housing Material | Polycarbonate |
| Pin Material | Mild steel with gold flash over nickel plate |
| Typical Applications | Ambient Environmental Monitoring |
| Operating Temperature Range | -20°C to +50°C |
| Recommended Storage Temp | 0°C to 20°C |
| Operating Pressure Range | Atmospheric ± 10% |
