Product Details:
|
| Detection Gas: | CO2 | Working Voltage: | 5.0±0.1V DC |
|---|---|---|---|
| Average Current: | <40mA (@5V Power Supply) | Peak Current: | 125mA (@5V Power Supply) |
| Interface Level: | 3.3 V(Compatible With 5V) | Detection Range: | 400~10000ppm(optional, See Table2.) |
| Highlight: | 125mA Gas Module,5V power supply Gas Module,MH-Z19E Gas Module |
||

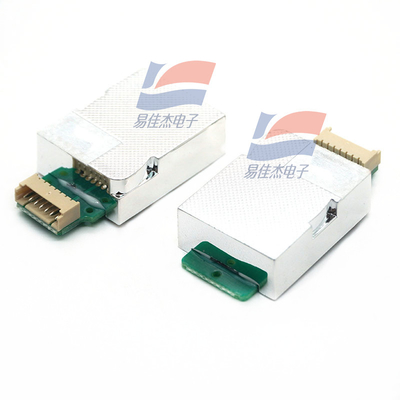

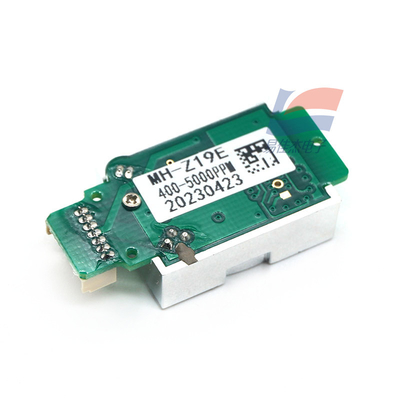

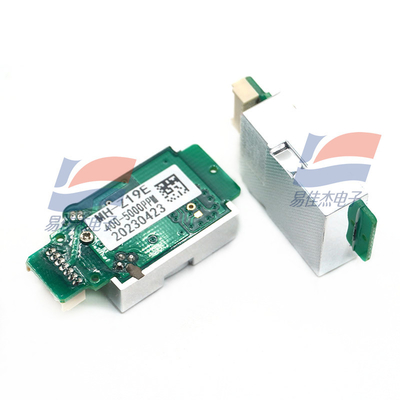

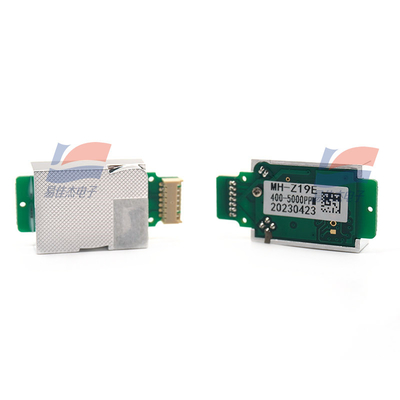

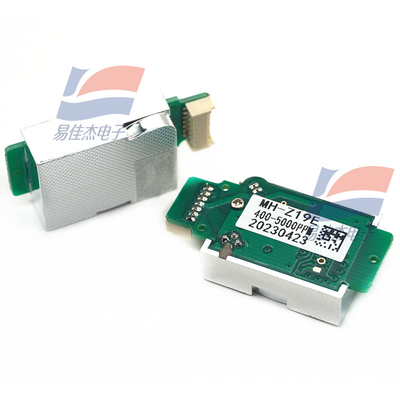

MH-Z19E NDIR Infrared Gas Module Is A common Type Small Size Sensor Pins/reversed Pins Type Or Terminal Type Using Non-dispersive Infrared (NDIR) Principle To Fetect The Existence Of CO2 In The Air
Profile:
MH-Z19E NDIR infrared gas module is a common type, small size sensor, pins/reversed pins type or terminal type, using non-dispersive infrared (NDIR) principle to detect the existence of CO2 in the air, with good selectivity, non-oxygen dependent and long life. Built-in temperature compensation; and it has UART output and PWM output. It is developed by the tight integration of mature infrared absorbing gas detection technology, precision optical circuit design and superior circuit design.
Applications :
*HVAC refrigeration
*Air cleaner device
*Indoor air quality monitoring
*Smart home
*Ventilation system
*School
Main Features :
*High sensitivity, low power consumption
*Good stability *Temperature compensation, excellent linear output
*Multiple output modes: UART, PWM
*Long lifespan
*Anti-water vapor interference, anti-poisoning
| Preheat time | 1 min |
| Refresh time | 2 s |
| Response Time | T90 < 120 s |
| Working temperature | -10 ~ 50 ℃ |
| Working humidity | 0 ~ 95% RH (No condensation) |
