Micropel 75c SR-W-M-75C Combustible Gas Sensor Part Number: PM769-000 for Confined Space Entry Monitoring

Name: Micropel 75c SR-W-M-75C Combustible Gas Sensor Part Number: PM769-000 for Confined Space Entry Monitoring
Brand: ShenzhenYijiajie Electronic Co., Ltd.
SKU: Micropel 75c SR-W-M-75C PM769-000
Price: 18.00 USD
Availability: InStock

All Products

Oxygen Gas Sensor
(205)

Electrochemical Gas Sensor
(15)

Gas Sensor
(1419)

Carbon Dioxide Sensor
(16)

Electronic Gas Analyzer
(73)

Medical Air Flow Sensor
(176)

Humidity Temperature Sensor
(109)

Electronic Pressure Sensor
(501)

Hall Effect Sensor
(59)

Current Sensor
(49)

Infrared Photoelectric Sensor
(194)

UV Photodiode Sensor
(82)

Other Sensors
(216)

Gas Sensor Module
(7)

Certification

I'm Online Chat Now

Micropel 75c SR-W-M-75C Combustible Gas Sensor Part Number: PM769-000 for Confined Space Entry Monitoring

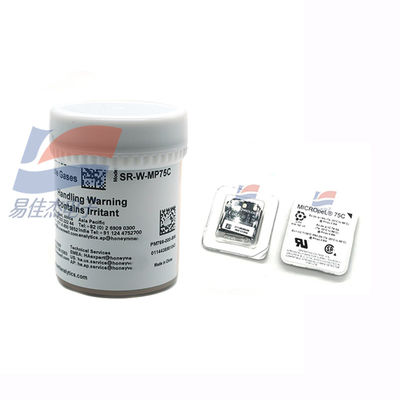

Large Image : Micropel 75c SR-W-M-75C Combustible Gas Sensor Part Number: PM769-000 for Confined Space Entry Monitoring

Product Details:

Place of Origin:	USA
Model Number:	Micropel 75c SR-W-M-75C PM769-000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

Micropel 75c SR-W-M-75C Combustible Gas Sensor Part Number: PM769-000 for Confined Space Entry Monitoring

Description

Gases Detected:	Combustible Gases	Range:	0-100% LEL
Sensitivity:	31 ± 5 MV/%methane	T90 Response Time:	<5 Seconds (methane)
Poison Resistance:	Resistance To H2S Poisoning Superior Silicone Resistance	Filter Lifetime:	Typically >5 Years
Highlight:	Reduced Orientation Effects Gas Sensor , UL Micropel 75c , CSA Approvals Micropel 75c

Micropel 75c SR-W-M-75C Combustible Gas Sensor Part Number: PM769-000 for Confined Space Entry Monitoring

Product Features:
High performance catalytic bead sensor for flammable gases
Excellent resistance to sensor poisoning and interference
Wide operating temperature range
Stable and reliable signal output
Low power consumption
Compact size for easy integration into gas detectors
Long operational life
High sensitivity to methane, propane, butane, hydrogen and other combustible gases
Fast response and recovery time
Suitable for portable and fixed gas detection instruments
Certified for use in hazardous areas

Applications:

Fixed gas detection systems for hazardous areas
Portable multi-gas detectors and personal safety monitors
Oil and gas industry: upstream, midstream, downstream facilities
Petrochemical plants, refineries, and chemical processing
Marine and offshore platforms
Mining safety monitoring
Wastewater treatment plants
Confined space entry monitoring
Fuel storage and pipeline leak detection
Commercial and industrial boiler rooms
Construction and utility safety equipment

Filter Lifetime	Typically >5 years
Linearity	Linear up to 3% methane
Operating Voltage	3.30 ± 0.02 VDC
Detector Operating Current	78 ± 6 mA
Maximum Power Consumption	295 mW
Resolution	1% LEL
Weight	2 g (nominal)
Operating Temperature Range	-20ºC to +55ºC

Micropel 75c SR-W-M-75C Combustible Gas Sensor Part Number: PM769-000 for Confined Space Entry Monitoring 0
