Product Details:
|
| Type: | Electrochemical Gas Sensor | Output Signal: | 15±5 NA/ppm |
|---|---|---|---|
| T90 Time: | <30 Seconds | Measurement Range: | 0 - 40000 Ppm |
| Highlight: | High Concentration Gas Sensor,GS+4CO Electrochemical Gas Sensor |
||

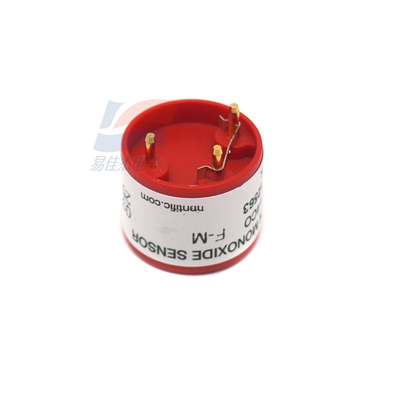

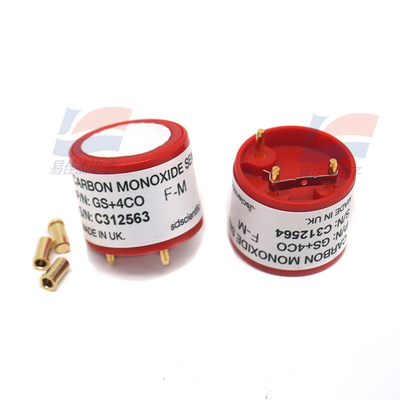

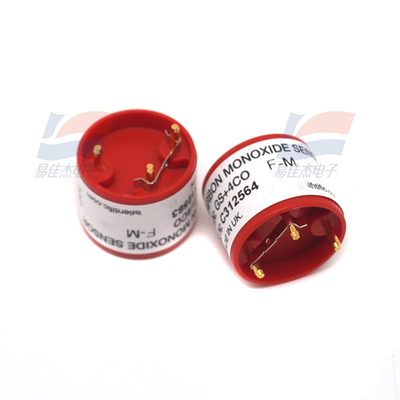

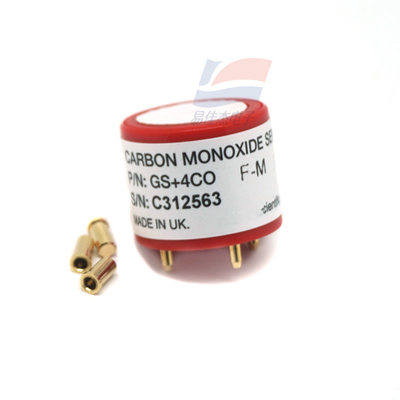

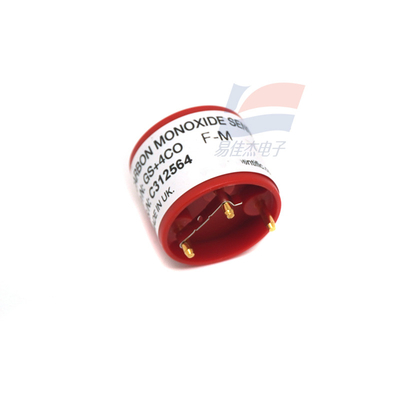

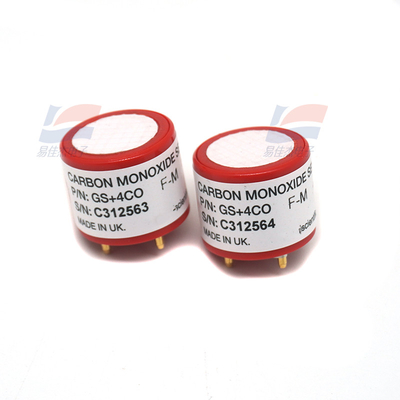

GS+4CO F-M Electrochemical Gas Sensor Suitable For High Concentration Environments
Environmental data:
1. Continuous temperature range: -30°C to +50°C
2. Pressure range: 800 to 1200 mbar
3. Operating humidity: 15% to 90% RH
| Repeatability | < ±1% CO equivalent |
| Load resistance | 10 ohms |
| Resolution (circuit dependent) | <1 ppm typical |
| Long term drift | <5% per year |
| Storage temperature | 0°C to 20°C |
| Expected operating life | 48 months |
