Product Details:
|
| High Speed Detection: | (20Hz) | Measurement Range: | 0 To 100% |
|---|---|---|---|
| Supply Voltage: | 3.3v | Low Power Consumption: | 35mW |
| Highlight: | Infrared CO2 Sensor,High Speed Detection CO2 Sensor,NDIR CO2 Sensor |
||
Product Description:

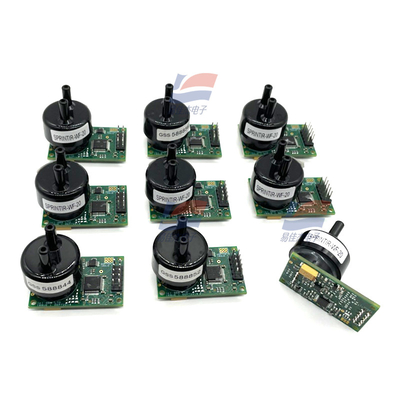

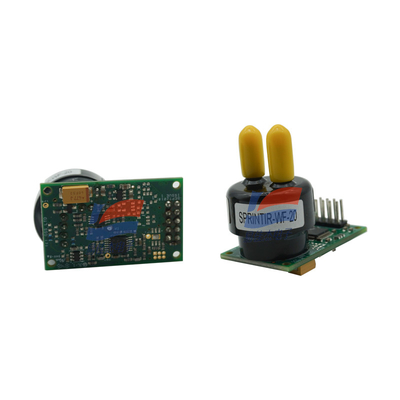

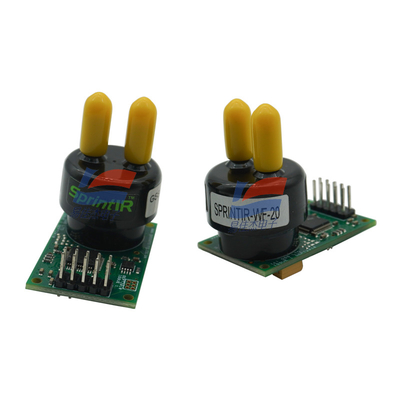

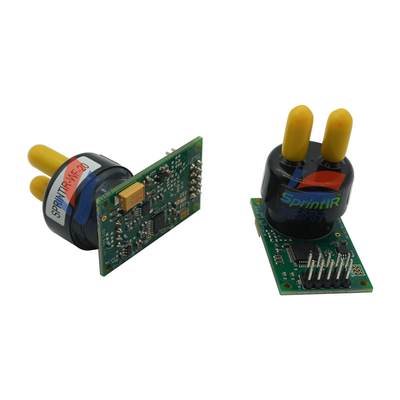

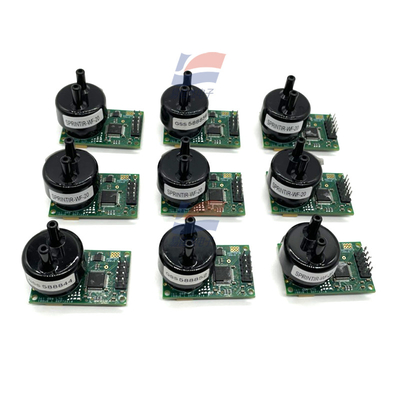

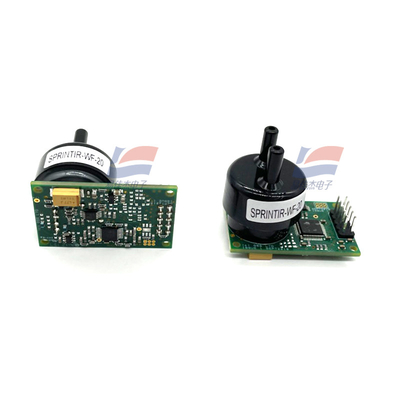

SPRINTIR-WF-20 UK High Speed Response Infrared CO2 Sensor (NDIR CO2 Sensor)
Features:
First, the UK GSS high-speed response infrared carbon dioxide sensor (NDIR CO2 sensor)SprintIR-WF Product description:
SprintIR is a high-speed responsive infrared CO2 sensor (20Hz), the infrared CO2 sensor SprintIR is suitable for capturing fast changes in CO2 concentration
Domains, such as metabolic assessment and ventilators, can also be used in the industrial field.
Second, the UK GSS high-speed response infrared carbon dioxide sensor (NDIR CO2 sensor)SprintIR-WF product features:
High Speed detection (20Hz)
Measurements range from 0 to 100%
The supply voltage is 3.3v
Low power consumption 35mW
Ventilation pipe is optional
Third, the UK GSS high-speed response infrared carbon dioxide sensor (NDIR CO2 sensor)SprintIR-WF product parameters:
Preheating time <1 minute
Working environment
0 ° C to 50 ° C (standard), -25 ° C to 55 ° C (extensible range), 0 to 95%RH, not
Dew formation
Storage temperature -30℃~+70℃
Sensing method Nondiffuse infrared light absorption technology
Gold plated light path patent technology
All-solid-state light source and detector patented technology
Sampling method Gas diffusion or pump type
Measuring range 0-5%, 0-20%, 0-60%, 0-100%
Maximum nonlinearity <1%FS for readings with accuracy of ±70ppm or +/-5%
Working pressure range 950mbar to 1050mbar
Response time 10 seconds ~ 3 minutes (user configured), every
Specifications:
| Measurements range from | 0 to 100% |
| supply voltage is | 3.3v |
| Low power consumption | 35mW |
| Preheating time | <1 minute |
