Product Details:
|
| Output Signal: | 350 ± 100 NA / Ppm | Typical Baseline Range (pure Air): | +/- 100 NA (Net S-A Baseline) |
|---|---|---|---|
| T90 Response Time: | < 30 Seconds | Measurement Range: | 0 - 20 Ppm |
| Maximum Overload: | 200 Ppm | Linearity: | Linear |
| Highlight: | AQ 7CO Carbon Monoxide Sensor,Accurate Measurements Carbon Monoxide Sensor,0 20 ppm Carbon Monoxide Sensor |
||

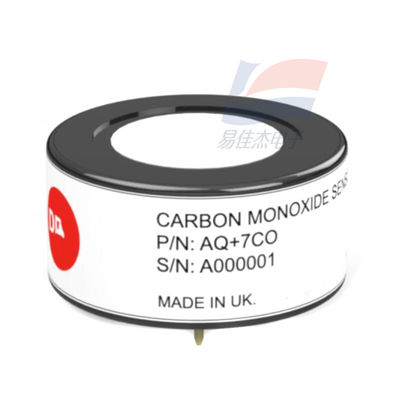

AQ+7CO Carbon Monoxide Sensor (CO)
Introduction The AQ+7CO is a 4 Electrode CO sensor designed for use in environmental air quality applications
Key Features: 4th electrode for improved baseline v temperature performance Internal filter for the removal of SOx / NOx / H2S and O3
| Repeatability | < ±2% CO equivalent |
| Recommended Load Resistor | 20 ohms |
| Resolution (Electronics dependent) | < 10 ppb typical |
| Temperature Range Continuous | -30oC to +50oC |
| Pressure Range | 800 to 1200 mbar |
| Operating Humidity Range | 15% to 90% RH |
| Long Term Output Drift | < 2% per month |
| Recommended Storage Temp | 0oC to 20oC |
