Product Details:
|
| Output Signal: | 1700 ± 400 NA / Ppm | Typical Baseline Range (pure Air): | +/- 200 NA (Net S-A Baseline) |
|---|---|---|---|
| T90 Response Time: | < 60 Seconds | Measurement Range: | 0 - 25 Ppm |
| Maximum Overload: | 100 Ppm | Linearity: | Linear |
| Highlight: | H2S Hydrogen Sulphide Sensor,AQ+7H2S Hydrogen Sulphide Sensor |
||

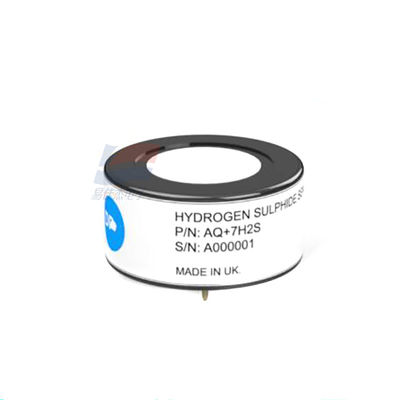

AQ+7H2S Hydrogen Sulphide Sensor (H2S)
Introduction The AQ+7H2S is a 4 Electrode H2S sensor designed for use in environmental air quality applications
Key Features: 4th electrode for improved baseline v temperature performance
| Repeatability | < ±2% H2S equivalent |
| Recommended Load Resistor | 20 ohms |
| Resolution (Electronics dependent) | < 10 ppb typical |
| Temperature Range Continuous | -30oC to +50oC |
| Pressure Range | 800 to 1200 mbar |
| Operating Humidity Range | 15% to 90% RH |
| Output signal | 1700 ± 400 nA / ppm |
| Typical Baseline Range (pure air) | +/- 200 nA (Net S-A Baseline) |
Contact Person: Miss. Xu
Tel: 86+13352990255
