Peak Current 500 mA Multi-in-One ZPHS01B Sensor Module with XH2.54-4P Physical Interface

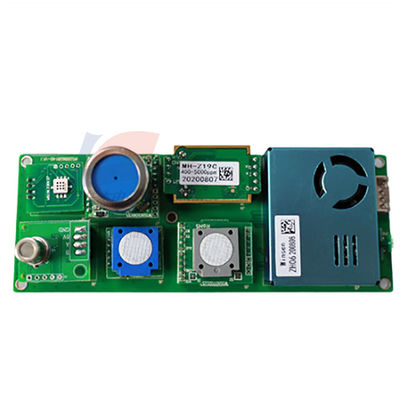

Large Image : Peak Current 500 mA Multi-in-One ZPHS01B Sensor Module with XH2.54-4P Physical Interface

Product Details:

Place of Origin:	CN
Model Number:	ZPHS01B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

Peak Current 500 mA Multi-in-One ZPHS01B Sensor Module with XH2.54-4P Physical Interface

Description

Model:	ZPHS01B	Working Voltage:	5V (DC)
Average Current:	＜300 MA	Peak Current:	＜500 MA
Physical Interface:	XH2.54-4P	Range:	0~1000μg/m3
Highlight:	Multi-in-One ZPHS01B Sensor Module , 500 mA ZPHS01B Sensor Module , XH2.54-4P ZPHS01B Sensor Module

Multi-in-One ZPHS01B Sensor Module

Description:

ZPHS01B is a multi-in-one air quality module, integrating laser dust sensor, infrared carbon dioxide sensor, electrochemical formaldehyde sensor, electrochemical ozone sensor, electrochemical carbon monoxide sensor, VOC sensor, NO2 sensor and temperature and humidity sensor. It can accurately measure the concentration of various gases in the air, with UART (TTL level) communication interface.

Application:

Gas detector
Air conditioner
Air quality monitoring
Air purifier
HVAC system
Smart home

Specifications:

Model		ZPHS01B
Target Gas		CO2.PM2.5.CH2O. O3. CO.TVOC. NO2.Temperature.Humidity
Working voltage		5V (DC)
Average Current		＜300 mA
Peak Current		＜500 mA
Physical interface		XH2.54-4P
Interface level		3V(compatible with 3.3V)
Output signal		UART (TTL)
PM2.5	Range	0~1000μg/m3
	Particle size range	0.3-10μm(PM1.0, PM2.5, PM10)
	Accuracy	±15 ug/m3(when concentration is≤100ug/m3); ±15% (when concentration is >100ug/m3)
	Response time	T90 < 45s
	Sampling method	Fan extraction
	MTTF	Continuous uninterrupted > 10000h
CO2	Range	0~5000 ppm
	Accuracy	±(50ppm+5% of reading value)
	Warm-up time	3min
	Response time	T90 < 120s
	Sampling method	Diffuse
	Lifespan	> 5 years
CH2O	range	0~6.250 mg/m3
	accuracy	± 0.03 mg/m3(when concentration is≤0.2mg/m3)； ± 20% reading value (when concentration is >0.2mg/m3)
	Warm-up	≤ 3min
	Response time	≤ 60s
	Recovery time	≤ 60s
	Sampling method	Diffuse
	Life span	5 years (18~25℃in clean air)
TVOC	Range	0~3 grades
	Warm-up	≤3min
	Response time	≤20s
	Recovery time	≤60s
	Sampling method	Diffuse
	Sensitivity attenuation	≤1% /year
O3	Range	0~10 ppm
	Resolution	0.01 ppm
	Accuracy	± 0.1ppm, when the concentration is≤1ppm; ±20% full range, when the concentration is over 1ppm;
	Warm-up	≤3min
	Response time	≤90s
	Recovery time	≤90s
	Sampling method	Diffuse
	Life span	2 years(18~25℃in clean air)
CO	Range	0~500 ppm
	Resolution	0.1 ppm
	Accuracy	± 10% reading value
	Warm-up	≤30s
	Response time	≤30s
	Recovery time	≤30s
	Sampling method	Diffuse
	Life span	3~5 years (in air)
NO2	Range	0.1~10 ppm
	Resolution	0.05ppm
	Warm-up	≤3min
	Response time	≤120s
	Recovery time	≤90s
Temperature	Range	-20~65℃
Temperature	Accuracy	±0.5℃(0-65℃)
Humidity	Range	0~100%RH
Humidity	Accuracy	±3%RH
Working temperature		-10～50℃
Working humidity		15~80% RH(no condensing)
Storage temperature(recommend)		0～25℃
Storage humidity (recommend)		0~80% RH
Dimensions		135 x50 x 26.2mm (L x W x H)
