KGZ-NGL-096-273 Precision Airborne Oxygen Sensor Zirconia O2 Sensor with Impedance Less Than 6kΩ at 700°C Precision

Product Description:

KGZ-NGL-096-273 High-Precision Airborne Oxygen Sensor Zirconia (O2 Sensor)

Features:

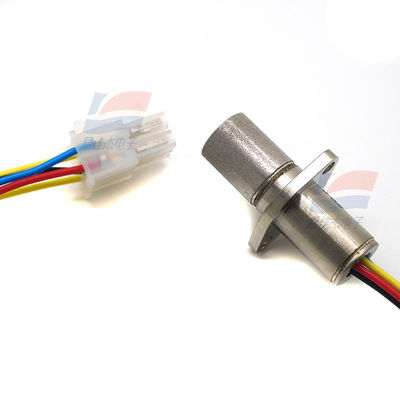

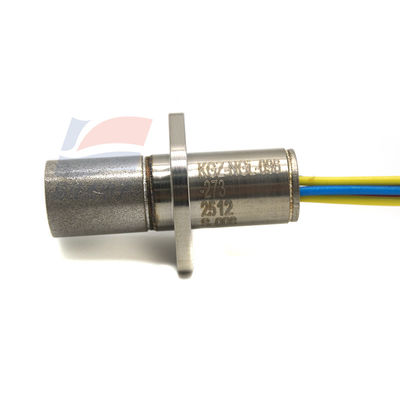

Flange-mounted zirconia oxygen sensor KGZ-NGL-096-273 is designed for use in the sampling chamber. It is favored by SST's aerospace customers as well as applications that require high-temperature and high-pressure operations.

Technical Specification

Heater voltage

Operation: 4.35VDC ± 0.1VDC (1.85A)

Standby: 2VDCDC (0.85A)

The pump impedance at 700°C is less than 6kΩ

The allowable gas temperature ranges from -100°C to +250°C

The gas flow rate is 0-10 m/s

Repeat the allowable acceleration of 5g

The included allowable acceleration is 30g

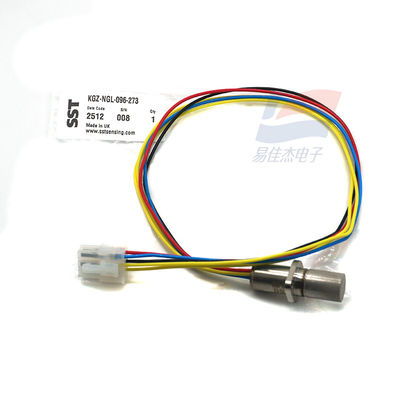

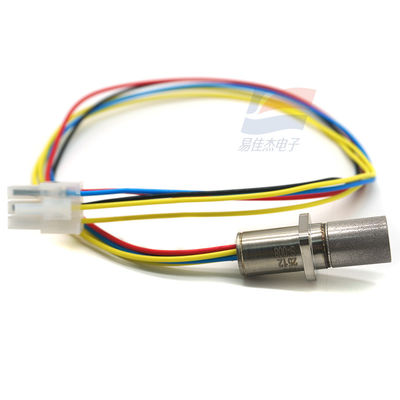

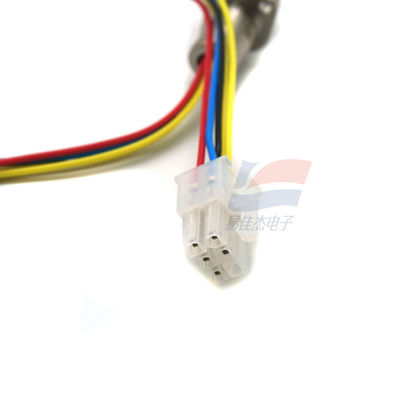

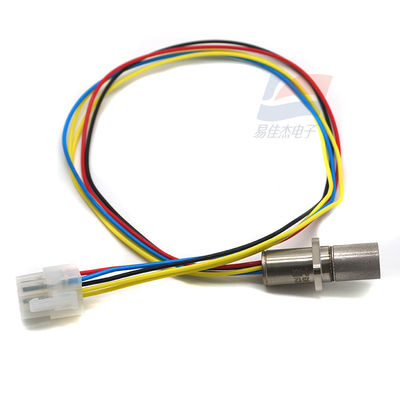

Terminal 0.4m cable with Molex connector

Output signal

The measurement range of oxygen partial pressure is 2mbar - 3bar, and the accuracy is 5mbar max

The internal operating temperature is 700°C

Response time (T90) < 4 seconds

It is recommended that the preheating time (before the sensor operation) be 60 to 100 seconds

The output value stabilizes after 180 seconds of startup
